Updated On : Oct-14,2022 Time Investment : ~25 mins

Add Annotations to Plotnine Charts

When going through a book or article, many of us have a habit of taking notes. We even highlight things like high few words with marker, draw round / square shapes around things, make acronyms, etc to remember things or to draw attention to an essential part of the article.

It is generally referred to as annotation.

We can even annotate our charts. We can add annotations of different kinds like arrows and labels highlighting points, slope lines, polygons, vertical lines specifying spans, bands around lines, etc.

What Can You Learn From This Article?

As a part of this tutorial, we have explained how to annotate charts created using Python library plotnine with simple and easy-to-understand examples. Tutorial explains different types of annotations like labels, arrows, slopes, bands, spans, polygons, boxes, etc.

If you are new to plotnine, we recommend you check the links below as it'll get you started with library faster.

Below, we have listed essential sections of tutorial to give an overview of the material covered.

Important Sections Of Tutorial

  1. Label Annotation
  2. Arrow & Label Annotation
  3. Slope Annotation
  4. Band Annotation
  5. Span Annotation
  6. Polygon Annotation

Below, we have imported plotnine and printed version of it that we have used in our tutorial.

import plotnine

print("Plotnine Version : {}".format(plotnine.__version__))
Plotnine Version : 0.8.0

Load Datasets

In this section, we have loaded datasets that we'll be using for plotting purposes in our tutorial. We have loaded below mentioned datasets.

  • mtcars - The dataset is available from plotnine sub-module "data" and has information (name, mpg, cylinders, horsepower, disposition, weight, gears, etc.) about various car models.
  • msleep - The dataset is available from plotnine sub-module "data" and has information (name, genus, vore, conservation, sleep hours, weight, brain weight, etc.) about various animals.
  • apple OHLC - The dataset is downloaded from Yahoo finance as a CSV file.

All datasets are available as pandas dataframe which we'll use for our plotting purpose.

import pandas as pd
from plotnine.data import mtcars

mtcars.head()
name mpg cyl disp hp drat wt qsec vs am gear carb
0 Mazda RX4 21.0 6 160.0 110 3.90 2.620 16.46 0 1 4 4
1 Mazda RX4 Wag 21.0 6 160.0 110 3.90 2.875 17.02 0 1 4 4
2 Datsun 710 22.8 4 108.0 93 3.85 2.320 18.61 1 1 4 1
3 Hornet 4 Drive 21.4 6 258.0 110 3.08 3.215 19.44 1 0 3 1
4 Hornet Sportabout 18.7 8 360.0 175 3.15 3.440 17.02 0 0 3 2
from plotnine.data import msleep

msleep.head()
name genus vore order conservation sleep_total sleep_rem sleep_cycle awake brainwt bodywt
0 Cheetah Acinonyx carni Carnivora lc 12.1 NaN NaN 11.9 NaN 50.000
1 Owl monkey Aotus omni Primates NaN 17.0 1.8 NaN 7.0 0.01550 0.480
2 Mountain beaver Aplodontia herbi Rodentia nt 14.4 2.4 NaN 9.6 NaN 1.350
3 Greater short-tailed shrew Blarina omni Soricomorpha lc 14.9 2.3 0.133333 9.1 0.00029 0.019
4 Cow Bos herbi Artiodactyla domesticated 4.0 0.7 0.666667 20.0 0.42300 600.000
apple_df = pd.read_csv("~/datasets/AAPL.csv")
apple_df["Date"] = pd.to_datetime(apple_df["Date"])

apple_df.head()
Date Open High Low Close Adj Close Volume
0 2019-04-05 196.449997 197.100006 195.929993 197.000000 194.454758 18526600
1 2019-04-08 196.419998 200.229996 196.339996 200.100006 197.514709 25881700
2 2019-04-09 200.320007 202.850006 199.229996 199.500000 196.922470 35768200
3 2019-04-10 198.679993 200.740005 198.179993 200.619995 198.027985 21695300
4 2019-04-11 200.850006 201.000000 198.440002 198.949997 196.379578 20900800

1. Label Annotation

The first annotation type that we'll discuss is label annotation. We'll be adding text labels to points in our chart.

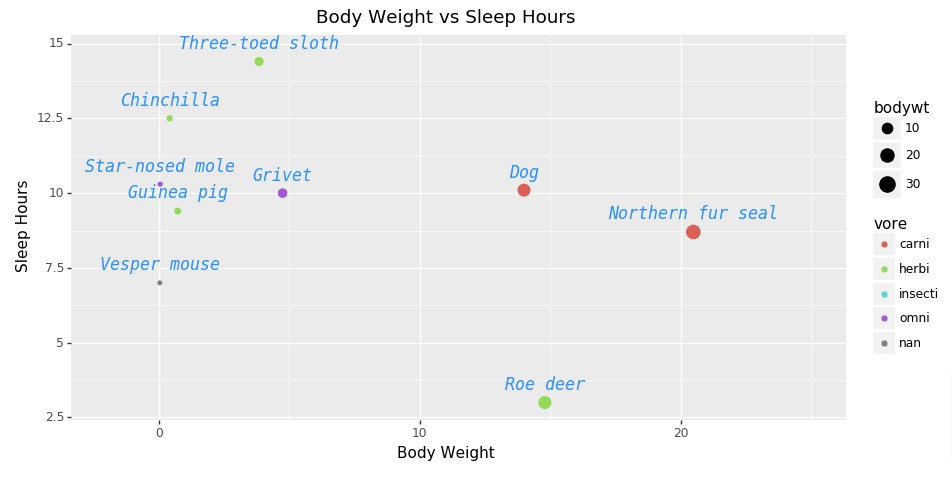

Below, we have created a scatter plot using "msleep" dataset showing relationship between body weight and sleep. The points are size-encoded by body weight and color-encoded by vore type (carnivore, herbivore, etc). For simplicity, we have plotted data for only first 10 animals.

The chart is created using geom_point() method.

Then, we have added text labels specifying animal names next to points using geom_text() method. We have also tried to modify label attributes like font size, font family, font style, font color, etc. The parameters nudge_y and va are used to align labels above points.

At last, we have combined all chart components that we created individually to create a full chart.

from plotnine import ggplot, aes, geom_point, labs, theme, geom_text, position_dodge, xlim

chart = ggplot()
points = geom_point(data=msleep[5:15],
                    mapping=aes(x="bodywt", y="sleep_total", size="bodywt", color="vore"),
                   )

## Adding Labels
text = geom_text(data=msleep[5:15],
                 mapping=aes(x="bodywt", y="sleep_total", label="name"),
                 color="dodgerblue", family="monospace", size=12, fontstyle="italic",
                 nudge_y=0.3, va="bottom")

labels = labs(x="Body Weight", y="Sleep Hours", title="Body Weight vs Sleep Hours")

scatter = chart + points + text + xlim(-2, 25) + labels + theme(figure_size=(10,5))

scatter

Plotnine Annotations

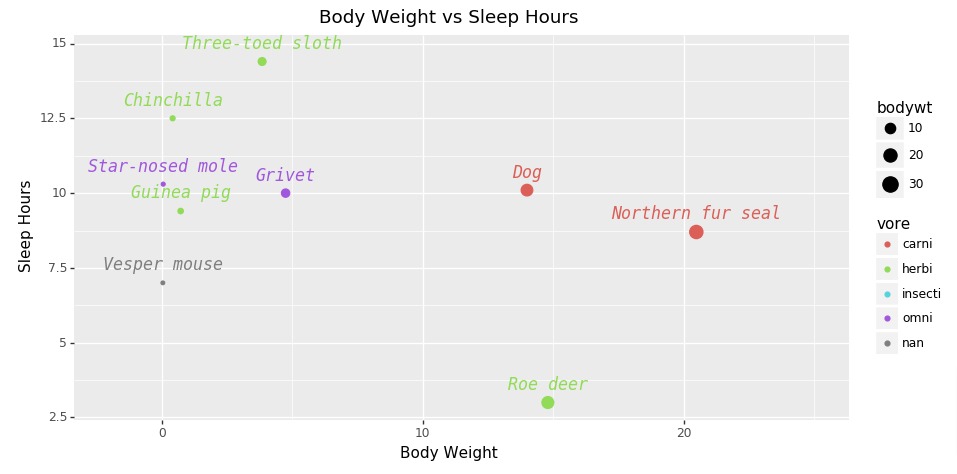

Below, we have again created same chart as previous cell but this time color-encoded labels according to vore-type.

from plotnine import ggplot, aes, geom_point, labs, theme, geom_text, position_dodge, xlim

chart = ggplot()
points = geom_point(data=msleep[5:15],
                    mapping=aes(x="bodywt", y="sleep_total", size="bodywt", color="vore"),
                   )

## Adding Labels
text = geom_text(data=msleep[5:15],
                 mapping=aes(x="bodywt", y="sleep_total", color="vore", label="name"),
                 family="monospace", size=12, fontstyle="italic", show_legend=False,
                 nudge_y=0.3, va="bottom")

labels = labs(x="Body Weight", y="Sleep Hours", title="Body Weight vs Sleep Hours")

scatter = chart + points + text + xlim(-2, 25) + labels + theme(figure_size=(10,5))

scatter

Plotnine Annotations

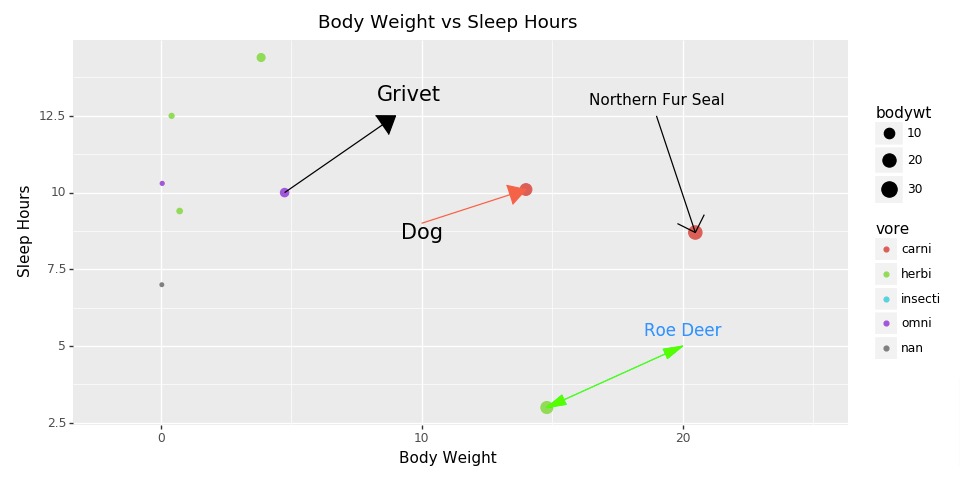

2. Arrow & Label Annotation

In this section, we have explained how we can add arrow and text labels as annotations to our plotnine charts.

First, we have created a scatter plot using "msleep" dataset showing relationship between body weight and sleep hours. The points are size-encoded by body weight and color-encoded by vore-type. For simplicity, we have created chart with data from only 10 animals.

Then, we have added four different types of arrows to chart using annotate() method. At the end of arrows, we have also added animal names as text labels using annotate() method.

The annotate() method let us add any type of geometric elements (plotnine methods starting with geom_) to chart. The first parameter of the method is the geometric element name and then the parameters needed by that geometric element.

Below, we have listed some commonly used elements:

  • points - Available directly using geom_points() method.
  • path - Available directly using geom_path() method.
  • line - Available directly using geom_line() method.
  • area - Available directly using geom_area() method.
  • bar - Available directly using geom_bar() method.
  • label - Available directly using geom_label() method.
  • polygon - Available directly using geom_polygon() method.
  • and many more.

We generally call geom_ methods when we have a dataset and we want to plot many geom elements using that dataset.

But when we want to add one or very few geom elements of a particular type then we can use annotate() method.

from plotnine import ggplot, aes, geom_point, labs, theme, geom_text, position_dodge, xlim
from plotnine import annotate, arrow

chart = ggplot()
points = geom_point(data=msleep[5:15],
                    mapping=aes(x="bodywt", y="sleep_total", size="bodywt", color="vore"),
                   )

## Adding Labels
annon_seal = annotate("path", x=[19, 20.490], y=[12.5, 8.7], arrow=arrow(length=0.2, type="open", ends="last", angle=45))
annon_text_seal = annotate("text", x=19, y=13, label="Northern Fur Seal")

annon_dog = annotate("path", x=[10, 14.0], y=[9, 10.1], color="tomato", arrow=arrow(length=0.2, type="closed", ends="last"))
annon_text_dog = annotate("text", x=10, y=8.7, label="Dog", size=15)

annon_deer = annotate("path", x=[20, 14.8], y=[5, 3.0], color="lime", arrow=arrow(length=0.2, type="closed", ends="both", angle=15))
annon_text_deer = annotate("text", x=20, y=5.5, label="Roe Deer", size=12, color="dodgerblue")

annon_grivet = annotate("path", x=[9, 4.75], y=[12.5, 10.0], arrow=arrow(length=0.2, type="closed", ends="first", angle=35))
annon_text_grivet = annotate("text", x=9.5, y=13.2, label="Grivet", size=15)

labels = labs(x="Body Weight", y="Sleep Hours", title="Body Weight vs Sleep Hours")

scatter = chart + points + xlim(-2, 25) + labels + theme(figure_size=(10,5))
scatter = scatter + annon_seal + annon_text_seal + annon_dog + annon_text_dog + annon_deer + annon_text_deer + annon_grivet +  annon_text_grivet

scatter

Plotnine Annotations

3. Slope Annotation

In this section, we have explained how we can add slope annotation to plotnine charts.

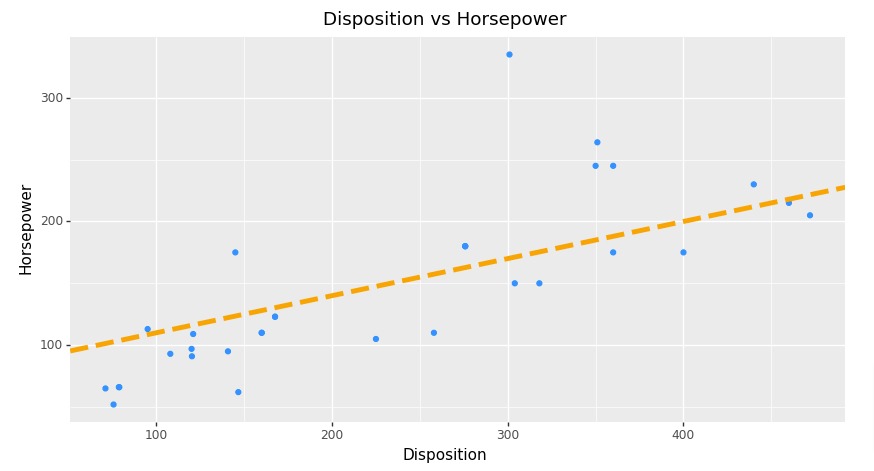

First, we have created scatter plot using "mtcars" dataset showing relationship between disposition and horsepower.

Then, we have created slope line using geom_abline() method. We need to provide slope and intercept parameters for creating a slope line. We have also modified styling attributes of a line like color, line style, width, etc.

from plotnine import ggplot, aes, geom_point, labs, theme, geom_text, position_dodge, xlim
from plotnine import geom_abline

chart = ggplot()
points = geom_point(data=mtcars,
                    mapping=aes(x="disp", y="hp"),
                    color="dodgerblue"
                   )

labels = labs(x="Disposition", y="Horsepower", title="Disposition vs Horsepower")

#annon_seal = annotate("path", x=[19, 20.490], y=[12.5, 8.7], arrow=arrow(length=0.2, type="open", ends="last", angle=45))

scatter = chart + points + labels + theme(figure_size=(10,5))
scatter = scatter + geom_abline(intercept=80, slope=0.3, linetype="dashed", size=2., color="orange")

scatter

Plotnine Annotations

Below, we have created same chart as previous cell with only difference being that we have created slope annotation using annotate() method.

from plotnine import ggplot, aes, geom_point, labs, theme, geom_text, position_dodge, xlim
from plotnine import geom_abline

chart = ggplot()
points = geom_point(data=mtcars,
                    mapping=aes(x="disp", y="hp"),
                    color="dodgerblue"
                   )

labels = labs(x="Disposition", y="Horsepower", title="Disposition vs Horsepower")

annon_abline = annotate("abline", intercept=80, slope=0.3, linetype="dashed", size=2., color="orange")

scatter = chart + points + labels + theme(figure_size=(10,5))
scatter = scatter + annon_abline

scatter

Plotnine Annotations

4. Band Annotation

In this section, we have explained how to add band annotation around line in plotnine charts.

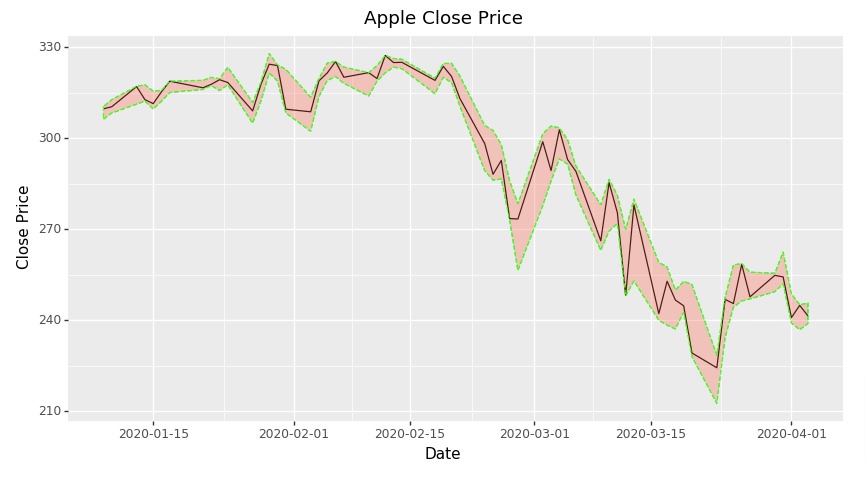

Below, we have first created a line chart using apple OHLC dataframe showing close price of apple stock. We have included only last 60 close prices in chart.

Then, we have added a band of low and high prices around close price line using geom_ribbon() method. This way we can notice in which range prices fluctuated based on band.

from plotnine import ggplot, aes, labs, theme, geom_text, position_dodge, xlim
from plotnine import geom_line, geom_ribbon

chart = ggplot()
points = geom_line(data=apple_df[-60:],
                    mapping=aes(x="Date", y="Close"),
                    color="black"
                   )

labels = labs(x="Date", y="Close Price", title="Apple Close Price")

bound = geom_ribbon(data=apple_df[-60:], mapping=aes(x="Date", ymin="Low", ymax="High"),
                    fill="tomato", color="lime", alpha=0.3, linetype="dashed")

scatter = chart + points + labels + theme(figure_size=(10,5))
scatter = scatter + bound

scatter

Plotnine Annotations

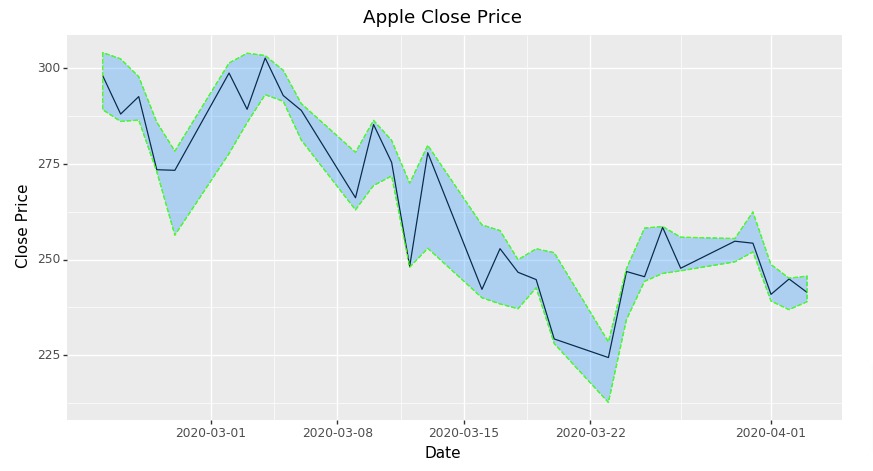

Below, we have again created a line chart and added band annotation to it but this time using annotate() method.

from plotnine import ggplot, aes, labs, theme, geom_text, position_dodge, xlim
from plotnine import geom_line, annotate

chart = ggplot()
points = geom_line(data=apple_df[-30:],
                    mapping=aes(x="Date", y="Close"),
                    color="black"
                   )

labels = labs(x="Date", y="Close Price", title="Apple Close Price")

bound = annotate("ribbon", x=apple_df[-30:]["Date"], ymin=apple_df[-30:]["Low"], ymax=apple_df[-30:]["High"],
                    fill="dodgerblue", color="lime", alpha=0.3, linetype="dashed")

scatter = chart + points + labels + theme(figure_size=(10,5))
scatter = scatter + bound

scatter

Plotnine Annotations

5. Span Annotation

In this section, we have explained how we can add span or range annotation to plotnine charts. The span annotation is represented generally by two horizontal or vertical lines highlighting span of some data variable.

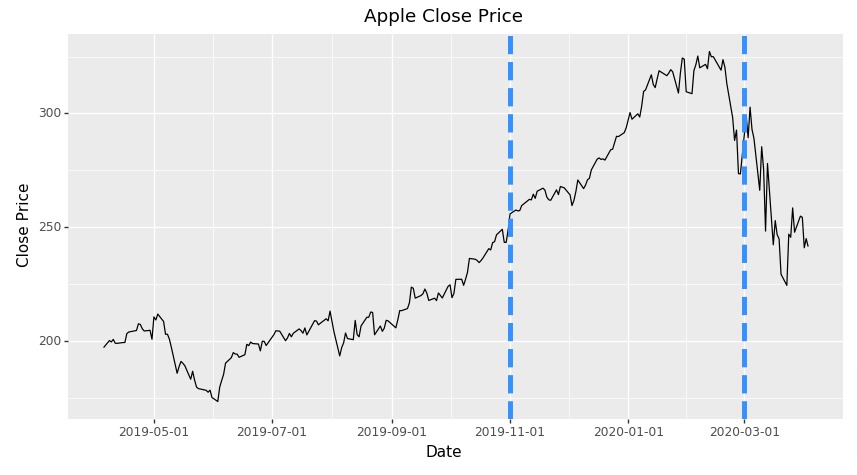

To explain span annotation, we have first created line chart showing close price of apple stock.

Then, we have added two vertical lines to chart at locations "2019-11-1" and "2020-3-1" using geom_vline() method. We have also modified line attributes like color, style, width, etc.

from plotnine import ggplot, aes, labs, theme, geom_text, position_dodge, xlim
from plotnine import geom_line, annotate, geom_vline
from datetime import datetime

chart = ggplot()
points = geom_line(data=apple_df,
                    mapping=aes(x="Date", y="Close"),
                    color="black"
                   )

labels = labs(x="Date", y="Close Price", title="Apple Close Price")

line1 = geom_vline(xintercept=datetime(2020,3,1), color="dodgerblue", size=2.0, linetype="dashed")
line2 = geom_vline(xintercept=datetime(2019,11,1), color="dodgerblue", size=2.0, linetype="dashed")

scatter = chart + points + labels + theme(figure_size=(10,5))
scatter = scatter + line1 + line2

scatter

Plotnine Annotations

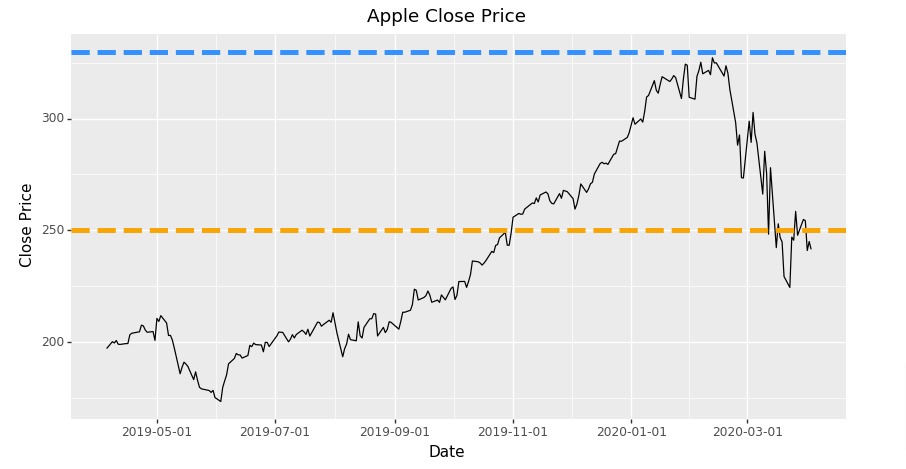

Below, we have explained how we can add horizontal span annotation. We have used geom_hline() method for adding horizontal lines.

We can add horizontal and vertical lines representing span to chart using annotate() method as well. We need to provide geometric object names as "hline" and "vline" based on need.

from plotnine import ggplot, aes, labs, theme, geom_text, position_dodge, xlim
from plotnine import geom_line, annotate, geom_hline
from datetime import datetime

chart = ggplot()
points = geom_line(data=apple_df,
                    mapping=aes(x="Date", y="Close"),
                    color="black"
                   )

labels = labs(x="Date", y="Close Price", title="Apple Close Price")

line1 = geom_hline(yintercept=250, color="orange", size=2.0, linetype="dashed")
line2 = geom_hline(yintercept=330, color="dodgerblue", size=2.0, linetype="dashed")

scatter = chart + points + labels + theme(figure_size=(10,5))
scatter = scatter + line1 + line2

scatter

Plotnine Annotations

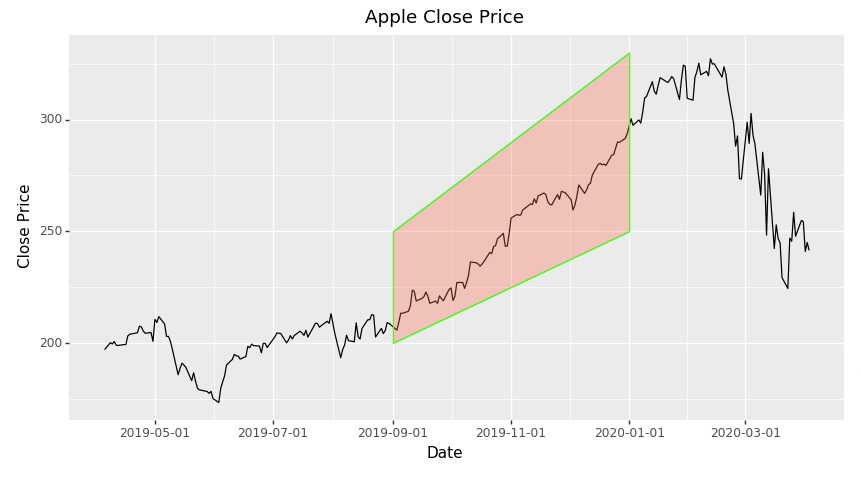

6. Polygon Annotation

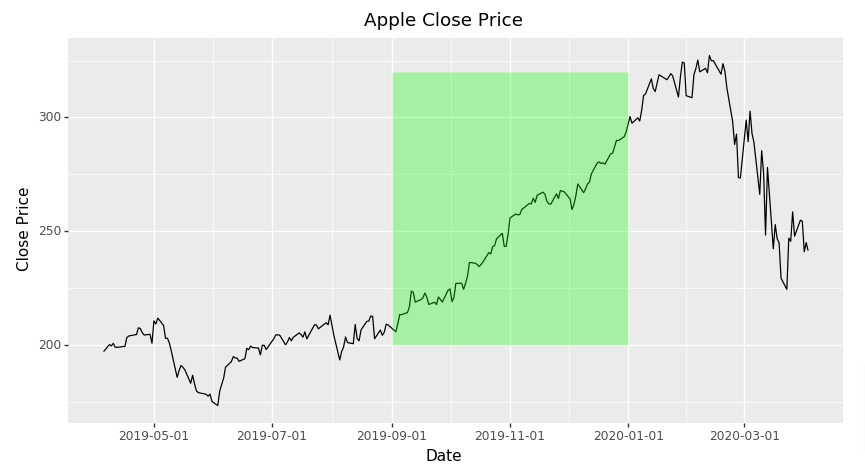

In this section, we have explained how to add polygon annotation to plotnine charts.

First, we have created line chart showing apple stock close prices.

Then, we have added a polygon to chart using annotate() method. In order to draw polygon, we need to provide coordinates of that polygon to method. We have added simple rectangle to highlight a particular area of chart.

from plotnine import ggplot, aes, labs, theme, geom_text, position_dodge, xlim
from plotnine import geom_line, annotate
from datetime import datetime

chart = ggplot()
points = geom_line(data=apple_df,
                    mapping=aes(x="Date", y="Close"),
                    color="black"
                   )

labels = labs(x="Date", y="Close Price", title="Apple Close Price")

start_date = datetime(2019,9,1)
end_date = datetime(2020,1,1)
polygon = annotate("polygon",
                   x=[start_date, start_date, end_date, end_date],
                   y=[200, 320, 320, 200],
                   fill="lime", alpha=0.3
                  )

scatter = chart + points + labels + theme(figure_size=(10,5))
scatter = scatter + polygon

scatter

Plotnine Annotations

Below, we have recreated example from previous section but this time we have used "rect" geometric object for creating polygon.

from plotnine import ggplot, aes, labs, theme, geom_text, position_dodge, xlim
from plotnine import geom_line, annotate
from datetime import datetime

chart = ggplot()
points = geom_line(data=apple_df,
                    mapping=aes(x="Date", y="Close"),
                    color="black"
                   )

labels = labs(x="Date", y="Close Price", title="Apple Close Price")

start_date = datetime(2019,9,1)
end_date = datetime(2020,1,1)
polygon = annotate("rect",
                   xmin=start_date, xmax= end_date,
                   ymin=320, ymax=200,
                   fill="lime", alpha=0.3
                  )

scatter = chart + points + labels + theme(figure_size=(10,5))
scatter = scatter + polygon

scatter

Plotnine Annotations

Below, we have created another example showing how to add polygon annotation to plotnine chart.

from plotnine import ggplot, aes, labs, theme, geom_text, position_dodge, xlim
from plotnine import geom_line, annotate
from datetime import datetime

chart = ggplot()
points = geom_line(data=apple_df,
                    mapping=aes(x="Date", y="Close"),
                    color="black"
                   )

labels = labs(x="Date", y="Close Price", title="Apple Close Price")

start_date = datetime(2019,9,1)
end_date = datetime(2020,1,1)
polygon = annotate("polygon",
                   x=[start_date, start_date, end_date, end_date],
                   y=[200, 250, 330, 250],
                   fill="tomato", alpha=0.3, color="lime"
                  )

scatter = chart + points + labels + theme(figure_size=(10,5))
scatter = scatter + polygon

scatter

Plotnine Annotations

This ends our small tutorial explaining how we can add various annotations to plotnine charts. Please feel free to explore other plotnine tutorials mentioned in references section below.

References

Useful Plotnine Tutorials

Sunny Solanki  Sunny Solanki

YouTube Subscribe Comfortable Learning through Video Tutorials?

If you are more comfortable learning through video tutorials then we would recommend that you subscribe to our YouTube channel.

Need Help Stuck Somewhere? Need Help with Coding? Have Doubts About the Topic/Code?

When going through coding examples, it's quite common to have doubts and errors.

If you have doubts about some code examples or are stuck somewhere when trying our code, send us an email at coderzcolumn07@gmail.com. We'll help you or point you in the direction where you can find a solution to your problem.

You can even send us a mail if you are trying something new and need guidance regarding coding. We'll try to respond as soon as possible.

Share Views Want to Share Your Views? Have Any Suggestions?

If you want to

  • provide some suggestions on topic
  • share your views
  • include some details in tutorial
  • suggest some new topics on which we should create tutorials/blogs
Please feel free to contact us at coderzcolumn07@gmail.com. We appreciate and value your feedbacks. You can also support us with a small contribution by clicking DONATE.


Subscribe to Our YouTube Channel

YouTube SubScribe

Newsletter Subscription
