How to Plot Network Charts in Python [Holoviews]?¶

The network charts are ways to represent graph data structure using data visualization. The network chart generally consists of nodes that are represented by a dot, circle, or icon and edges which are represented by simple line for undirected graph or arrow for directed graphs.

Holoviews is a python library that provides easy to use API which can be used to plot network charts. Holoviews is a wrapper library around bokeh and matplotlib hence it uses them for plotting purpose behind the scene. We'll be using both bokeh and matplotlib backends for explaining network charts plotting using holoviews. If you do not have a background on holoviews and you are interested in learning holoviews then we have a tutorial on holoviews basics. Please feel free to explore our tutorial to learn about the wonderful data visualization library called holoviews.

We have already covered few tutorials about working with graph data structure using the networkx library. Networkx also provides data visualization of networks using matplotlib as backend but its quite basic and can get a bit messy with too many nodes. We'll be hence concentrating on holoviews for network charts in this tutorial. If you are interested in learning about networkx and network handling using networkx then you can visit our below tutorials:

• Networkx Basics
• Network Analysis in Python - Node Importance & Paths [Networkx]
• Network Analysis in Python - Important Structures & Bipartite Graphs [Networkx]

We'll start by importing necessary libraries.

We'll be using Brazil flight data for visualization purposes. The dataset is available at kaggle.

• Flights in Brazil - It has information about various flights from and to Brazil.

We suggest that you download the dataset and follow along with us using the same dataset to better understand the material and get an in-depth idea about the whole process. We'll first load the dataset as a pandas dataframe and aggregate it in various ways to create different network charts.

Below we are filtering the original dataset to keep only entries for domestic flights. We have filtered the original dataset to keep entries where origin and destination country is Brazil. We'll be reusing this dataset by aggregating its data in various ways to generate different network charts.

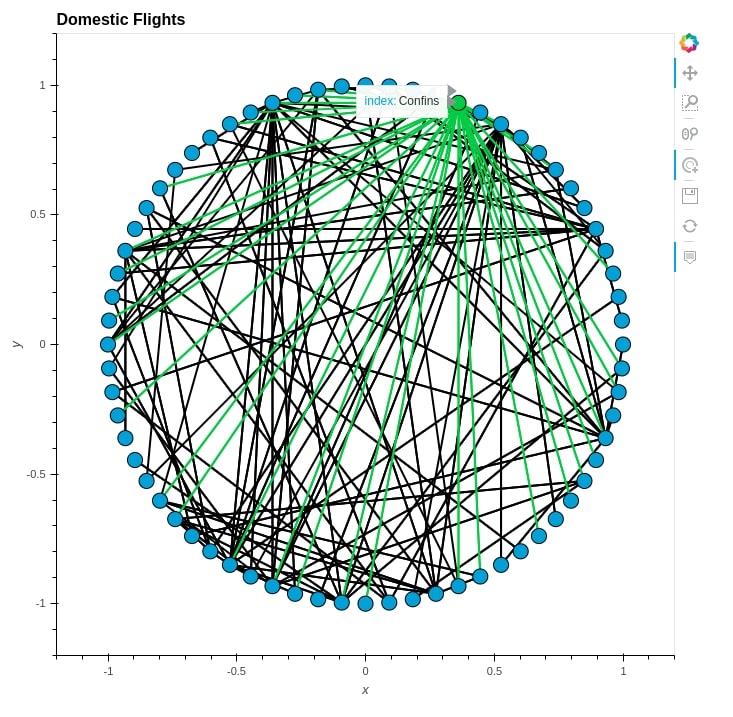

Domestic Flights Network Chart [Bokeh]¶

We'll first plot a network chart showing flights between various cities in Brazil. We have already set bokeh as an extension of holoviews. We'll first create an aggregated dataset from a domestic flight dataset where we'll group flights according to source and destination countries to get a count for each combination.

Holoviews provides an easy to use method named Graph() to create a network chart. It expects 3 arguments:

• First Argument is dataframe.
• kdims - The second argument is 2 strings as a list representing columns from dataframe which will be used as source and destination connecting particular edge of the graph.
• vdims - The third argument can be a list of strings representing columns of dataframe which will represent attributes of that edge.

If we just provide dataframe as input to the method then it'll take the first 2 columns as the source and destination nodes of edges of the graph and third column as an attribute of that edge. We have already created our dataframe with the first column as source node of edge, the second column as destination node of edge, and the third column as the weight of that edge hence we'll not be providing kdims and vdims arguments. If dataframe has many columns and we need to use particular columns to represent source node, destination node of edge, and attributes of an edge than we can pass them as a list to kdims and vdims.

We are also printing the output of the Graph() method. We can see that it has taken City_Orig and City_Dest as kdims (Source and Destination Nodes of Edge) and Count column as vdims (Attribute of Edge).

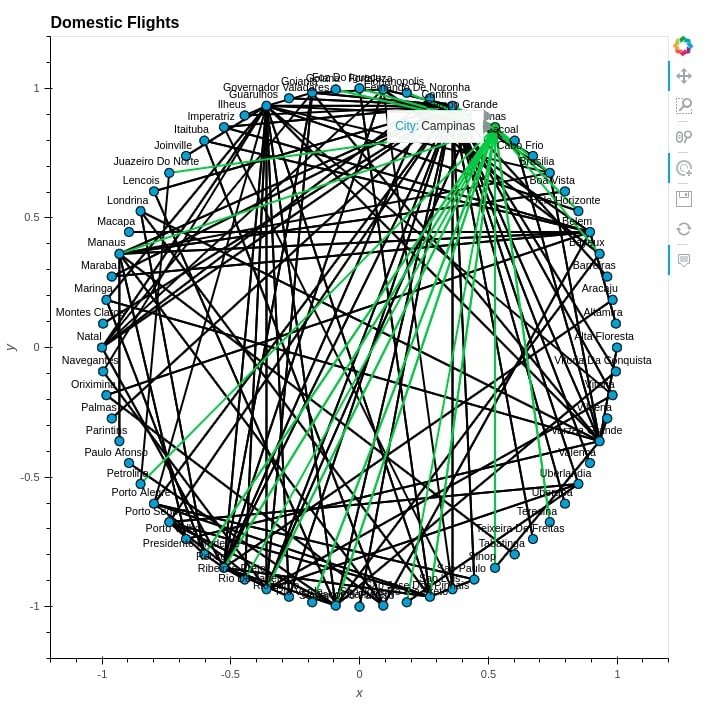

Domestic Flights Network Chart with Labels [Bokeh]¶

Below we are gain creating the same network chart from the previous step but this time we have also added labels to nodes of the chart as well. We have also specified vdims attribute as a list of column names representing cities between which there are flights.

In order to add labels to the chart, we need to first create a holoviews dataset which has each node mentioned uniquely. We need to pass this dataset along with the dataframe to Graph() method as well. We then can call Labels() method of holoviews by passing it a list of nodes from the original graph and column to use for labels. We can them merge labels with the graph using * operator. We can also set attributes of labels by calling opts() method on it.

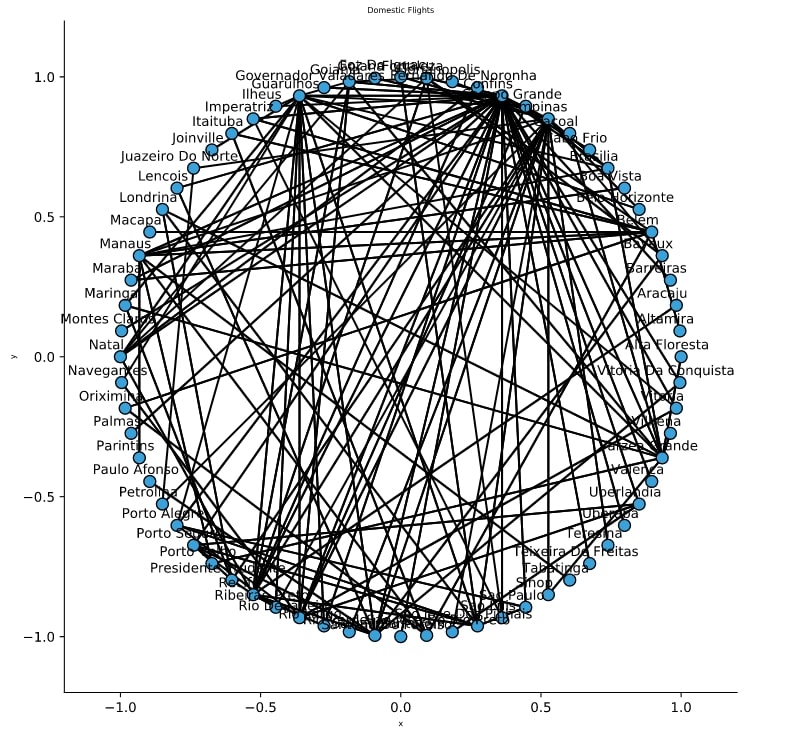

Domestic Flights Network Chart with Labels [Matplotlib]¶

Below we are creating the same chart as the previous step but using matplotlib. We first need to set backend as matplotlib in order to create a chart using matplotlib as a background. We can then use exactly the same code as the previous step to create a network chart.

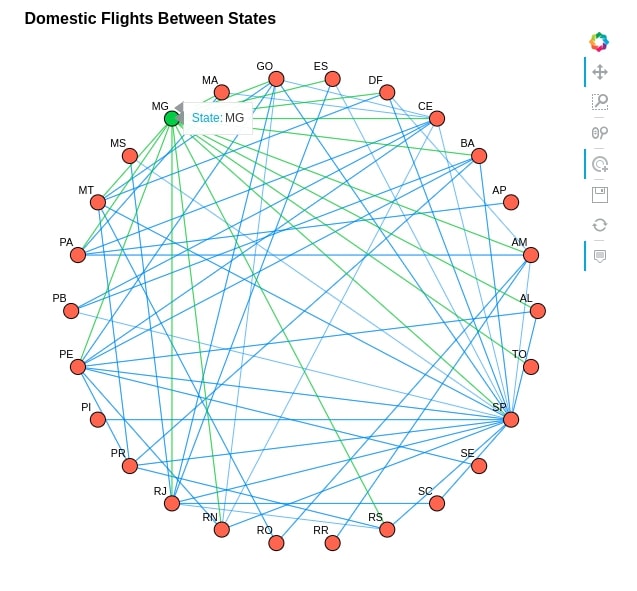

Domestic Flights Network Chart According to States with Labels [Bokeh]¶

We'll now create a network chart showing flights between states of Brazil. We'll first create an aggregated dataset from the domestic flight dataset created earlier. It'll have flight count between all states of Brazil and their count. It'll have 3 columns representing source state, the destination state of flight and count of flights between them.

We are also creating holoviews dataset of all unique states which will be used for labeling graph.

We have also modified node sizes, edge color, node color, edge line width attributes of the chart. We also have switched off the x and y-axis from the chart.

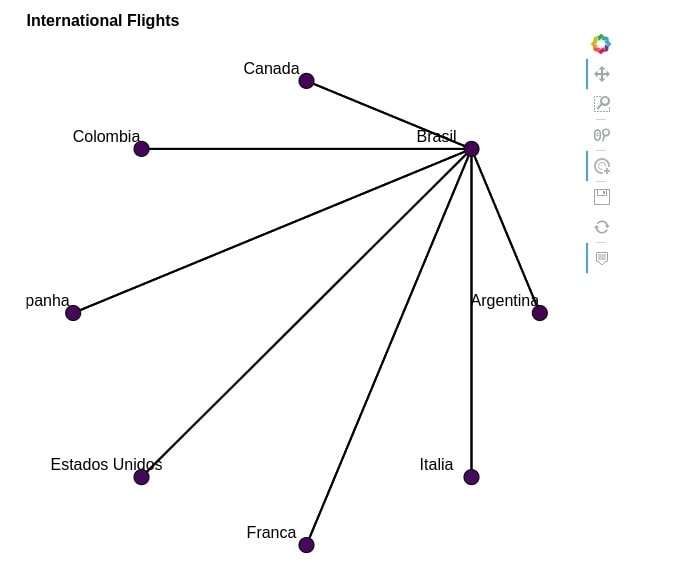

International Flights Network Chart [Bokeh]¶

We'll now create a network chart displaying flights between various countries. We have first created an aggregated dataset from our original brazil flight dataset which has information about each combinations of countries and flight count between them.

We have also created holoviews dataset of unique country names in order to give labels to chart. We have also used almost the same code as previous steps in order to create a network chart for this case.

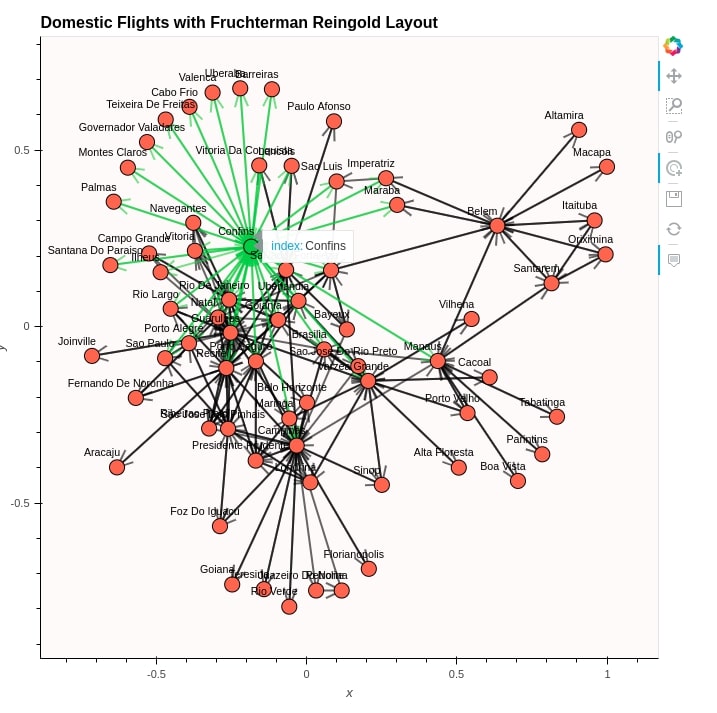

Domestic Flights Network Chart With Fruchterman Reingold Layout [Bokeh]¶

Below we are again creating a network chart of domestic flights between cities but this time we have used a different way to layout the nodes of the chart. By default, holoviews layout nodes of network chart in a circle. We have used the Fruchterman Reingold layout available from the networkx library. If you are not aware of the networkx library and interested in learning it then we recommend that you go through our tutorials on it from the reference section at the end.

Holoviews provides a method named layout_nodes as a part of module holoviews.element.graphs which can be used to layout nodes of the graph according to a different layout. It accepts an existing graph object as the first parameter and layout method to bet used from networkx as the second attribute.

We can set the graph as directed or undirected by setting True or False value for the directed attribute as explained in the code below. We have used it True this time to show directions. All our previous plots were undirected because we had set directed to False.

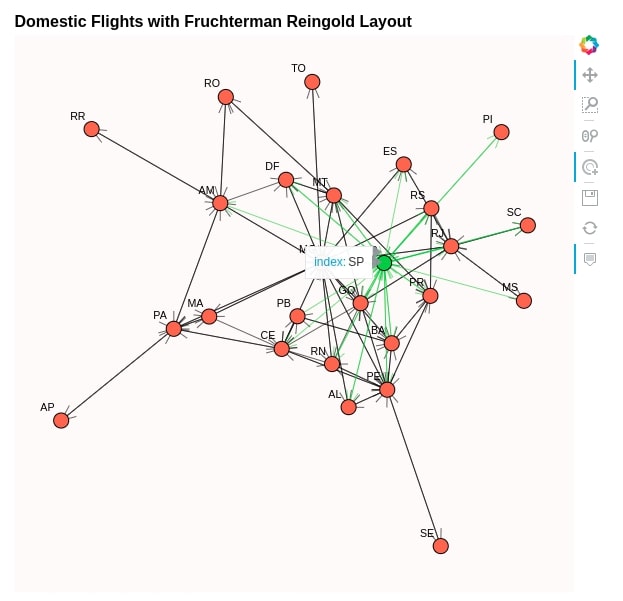

Domestic Flights Network Chart With Fruchterman Reingold Layout [Bokeh]¶

Below we are creating a network chart of flight count between states of brazil using Fruchterman Reingold layout. We have used the same code as the previous step for generating a network chart.

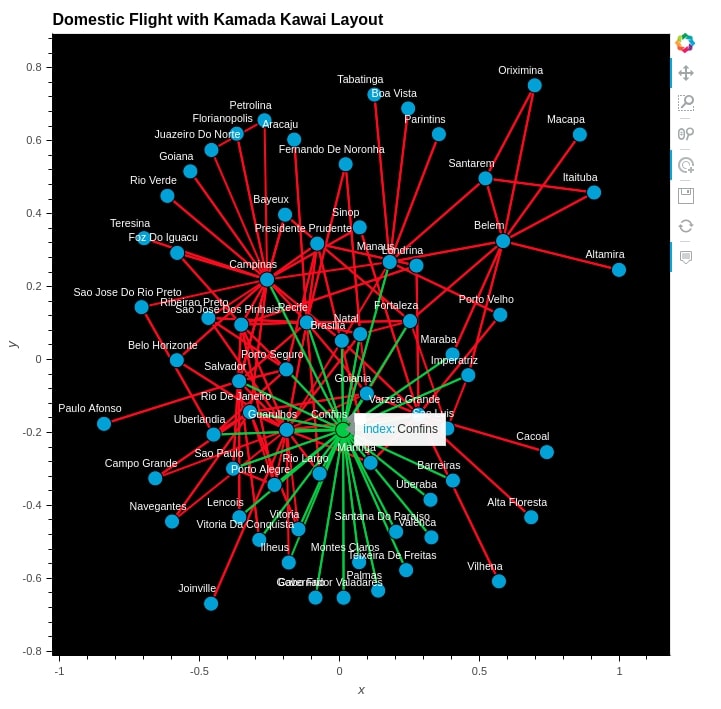

Domestic Flights Network Chart With Kamada Kawai Layout [Bokeh]¶

Below we have again created a network chart of flights between cities but this time using the Kamada Kawai layout. We have also modified other chart attributes like background, text colors, etc.

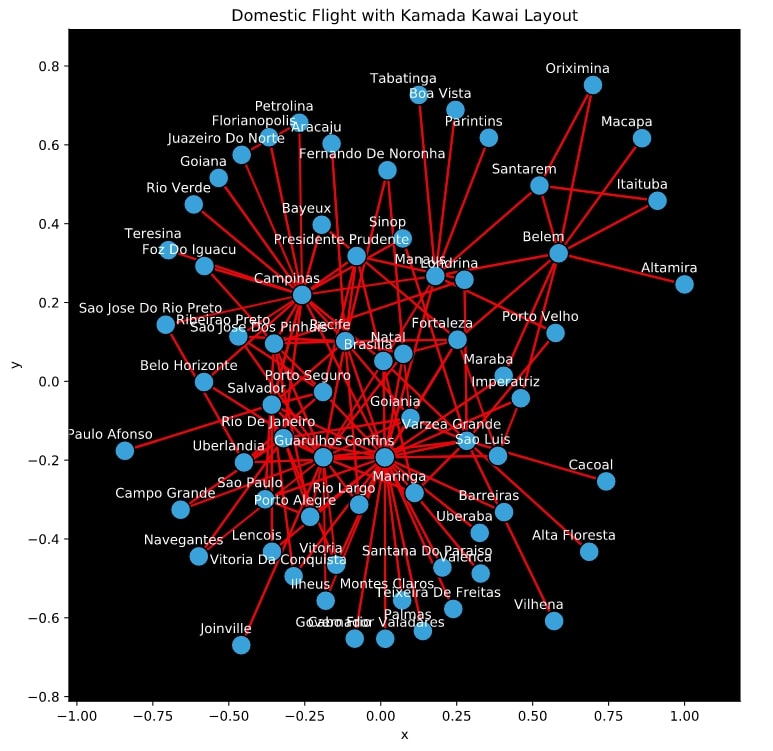

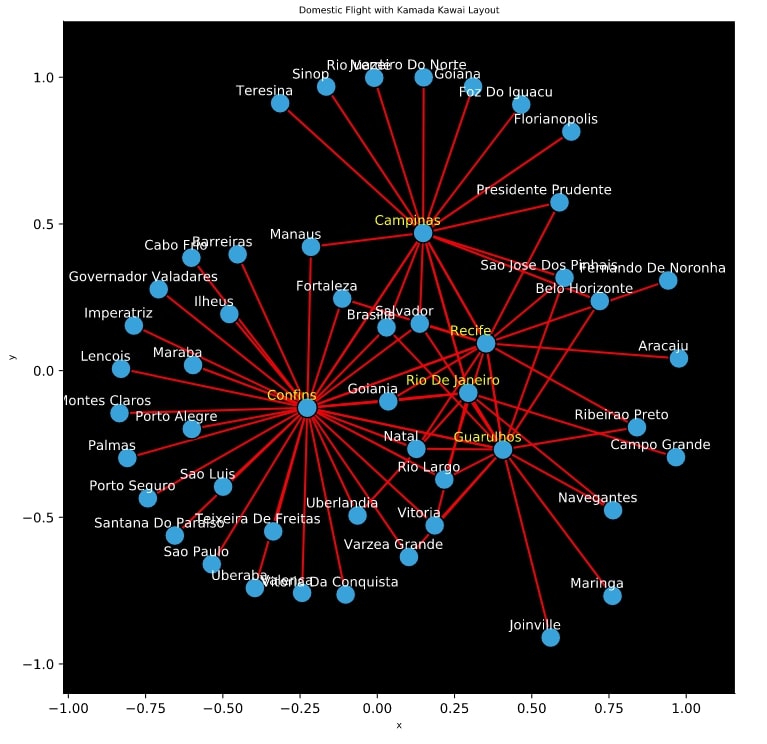

Domestic Flights Network Chart With Kamada Kawai Layout [Matplotlib]¶

Below we have again created a network chart the same as the previous step but using matplotlib as backend. Please make a note that we are using exactly the same code as the previous step to generate a network chart using matplotlib. We just need to set backend as matplotlib first.

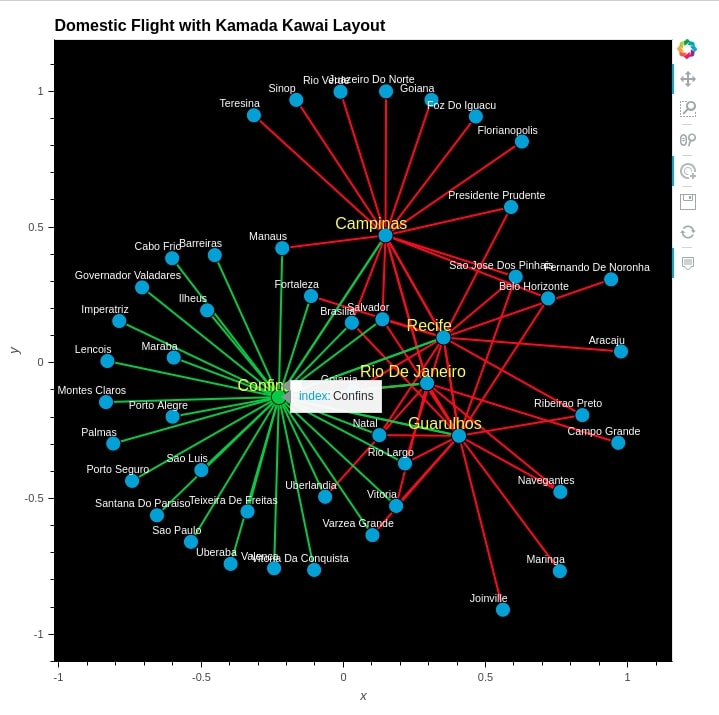

Network Chart of Flights Between Selected Cities With Kamada Kawai Layout [Bokeh]¶

Below we are creating another network chart of only cities which had more traffic to them from previous charts. We can see that cities Campinas, Confins, Guarulhos, Rio De Janeiro and Recife has more traffic compared to other cities. We can filter original domestic flights dataset to keep only entries where source city is one of these cities in order to see traffic originating from these cities. We have also divided labels into two categories where one category has labels of these main cities and the second category has labels of all other cities.

Network Chart of Flights Between Selected Cities With Kamada Kawai Layout [Matplotlib]¶

Below we are creating the same chart as the previous step but using matplotlib as background. Please make a note that we are using exactly the same code as the previous step to generate a network chart using matplotlib. We just need to set backend as matplotlib first.

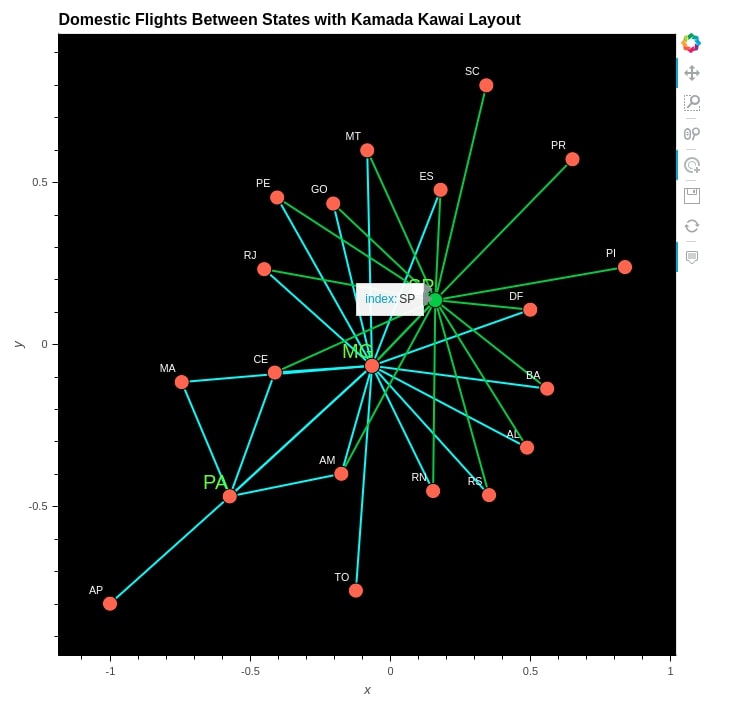

Network Chart of Flights Between the Selected States With Kamada Kawai Layout [Bokeh]¶

Below we are creating a network chart showing flight traffic between three important states and all other states. We can observe from our previous flights between states network chart and can notice that three states (MG, SP, and PA) has most flights. We have filtered domestic flights dataset to keep only entries where source state is among one of these three states in order to analyze traffic from these three states.

This ends our small tutorial on the network chart plotting using holoviews. Please feel free to let us know your views in the comments section.
