Updated On : Mar-11,2022 Time Investment : ~45 mins

PyTorch: Learning Rate Schedules

Learning rate is one of the most important parameters of training a neural network that can impact the results of the network. When training a network using optimizers like SGD, the learning rate generally stays constant and does not change throughout the training process. Research has shown that as we train for more epochs, decreasing the learning rate little can improve the performance of the network. It can give a little boost to performance. The learning rate can be reduced after each epoch or batch. This process of decreasing the learning rate over time during the training process is generally referred to as learning rate scheduling or learning rate annealing in the machine learning community. Over time, there are various approaches tried to decrease the learning rate.

As a part of this tutorial, we'll be discussing various learning rate schedules available from PyTorch. We have tried to cover the majority of schedules available from it. We have chosen the Fashion MNIST dataset for our tutorial and will be training a simple CNN on it. We'll train CNN with various learning rate schedules and compare their results. We have also created visualizations showing how the learning rate changes during the training process. We are assuming that the reader has little background on Pytorch. Please feel free to check the below tutorial if you want to learn about CNN creation using Pytorch.

PyTorch let us change the learning rate in two different ways during the training process.

  • After completion of each batch.
  • After completion of each epoch.

We can modify code based on our requirements on when we want to change the learning rate. It even let us use more than one learning rate scheduler together which can be executed one after another to modify the learning rate using different formulas. We have explained in one of our examples how we can combine multiple learning rate schedulers as well.

Below, we have listed important sections of tutorial to give an overview of the material covered.

Important Sections of Tutorial

Below, we have imported PyTorch and printed the version that we have used in our tutorial.

import torch

print("Torch Version : {}".format(torch.__version__))
Torch Version : 1.9.1+cpu

Load Data

In this section, we have loaded the Fashion MNIST dataset available from keras. The data has grayscale images of shape (28,28) pixels for 10 different fashion items. The dataset is already divided into the train (60k images) and test (10k images) sets. The below table has a mapping from index value to category name of the images.

Label Description
0 T-shirt/top
1 Trouser
2 Pullover
3 Dress
4 Coat
5 Sandal
6 Shirt
7 Sneaker
8 Bag
9 Ankle boot

The keras provides dataset as numpy arrays whereas PyTorch networks require tensors hence we have converted them to PyTorch tensors. Later on, we have also created Dataset and DataLoader objects from tensors. The data loader objects will let us loop through data during the training process easier. We have kept a batch size of 128 samples when creating loader objects for train and test datasets.

from tensorflow import keras
from sklearn.model_selection import train_test_split

(X_train, Y_train), (X_test, Y_test) = keras.datasets.fashion_mnist.load_data()

X_train, X_test, Y_train, Y_test = torch.tensor(X_train, dtype=torch.float32),\
                                   torch.tensor(X_test, dtype=torch.float32),\
                                   torch.tensor(Y_train, dtype=torch.long),\
                                   torch.tensor(Y_test, dtype=torch.long)

X_train, X_test = X_train.reshape(-1,1,28,28), X_test.reshape(-1,1,28,28)

X_train, X_test = X_train/255.0, X_test/255.0

classes =  Y_train.unique().tolist()
class_labels = ["T-shirt/top","Trouser","Pullover","Dress","Coat","Sandal","Shirt","Sneaker","Bag","Ankle boot"]
mapping = dict(zip(classes, class_labels))

X_train.shape, X_test.shape, Y_train.shape, Y_test.shape
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/train-labels-idx1-ubyte.gz
32768/29515 [=================================] - 0s 0us/step
40960/29515 [=========================================] - 0s 0us/step
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/train-images-idx3-ubyte.gz
26427392/26421880 [==============================] - 0s 0us/step
26435584/26421880 [==============================] - 0s 0us/step
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/t10k-labels-idx1-ubyte.gz
16384/5148 [===============================================================================================] - 0s 0us/step
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/t10k-images-idx3-ubyte.gz
4423680/4422102 [==============================] - 0s 0us/step
4431872/4422102 [==============================] - 0s 0us/step
(torch.Size([60000, 1, 28, 28]),
 torch.Size([10000, 1, 28, 28]),
 torch.Size([60000]),
 torch.Size([10000]))
from torch.utils.data import TensorDataset, DataLoader

train_dataset = TensorDataset(X_train, Y_train)
test_dataset  = TensorDataset(X_test , Y_test)

train_loader = DataLoader(train_dataset, batch_size=128, shuffle=True)
test_loader = DataLoader(test_dataset, batch_size=128, shuffle=True)

Define CNN

In this section, we have defined our convolutional neural network using Pytorch. Our network consists of 3 convolution layers and one linear layer. The convolution layers have 32, 16, and 8 output filters respectively. The kernel size of filters used by all three convolution layers is (3,3). We have also applied relu activation function to the output of each convolution layer. The output of the third convolution layer is flattened and then given as input to the linear layer. The linear layer has 10 units which are the same as the number of target classes.

from torch import nn

class ConvNet(nn.Module):
    def __init__(self):
        super(ConvNet, self).__init__()
        self.seq = nn.Sequential(
            nn.Conv2d(in_channels=1, out_channels=32, kernel_size=(3,3), padding="same"),
            nn.ReLU(),

            nn.Conv2d(in_channels=32, out_channels=16, kernel_size=(3,3), padding="same"),
            nn.ReLU(),

            nn.Conv2d(in_channels=16, out_channels=8, kernel_size=(3,3), padding="same"),
            nn.ReLU(),

            nn.Flatten(),
            nn.Linear(8*28*28, len(classes)),
            #nn.Softmax(dim=1)
        )

    def forward(self, x_batch):
        preds = self.seq(x_batch)
        return preds
conv_net = ConvNet()

conv_net
ConvNet(
  (seq): Sequential(
    (0): Conv2d(1, 32, kernel_size=(3, 3), stride=(1, 1), padding=same)
    (1): ReLU()
    (2): Conv2d(32, 16, kernel_size=(3, 3), stride=(1, 1), padding=same)
    (3): ReLU()
    (4): Conv2d(16, 8, kernel_size=(3, 3), stride=(1, 1), padding=same)
    (5): ReLU()
    (6): Flatten(start_dim=1, end_dim=-1)
    (7): Linear(in_features=6272, out_features=10, bias=True)
  )
)
preds = conv_net(X_train[:5])

preds.shape
torch.Size([5, 10])

1. Constant Learning Rate

In this section, we are training our network with a constant learning rate. We'll be recording the accuracy of the model on test data with various learning rate schedules along with a constant learning rate for comparison purposes later.

Below, we have designed three functions that we'll use for training. There is one main training function that takes model, loss function, train loader, validation loader, and a number of epochs as input. It then executes the training loop number of epochs times. During each epoch, it performs a forward pass through the network to make predictions, calculate loss, calculate gradients, and update network parameters. It also records the loss of each batch and prints the average training loss after completion of each epoch. At the end of each epoch, it even calculates validation accuracy and validation loss using the other two helper functions defined in the below cell. The training function returns validation accuracy after completion of total training.

from sklearn.metrics import accuracy_score
from tqdm import tqdm

def CalcValLoss(model, loss_func, val_loader):
    with torch.no_grad(): ## Prevents calculation of gradients
        val_losses = []
        for X_batch, Y_batch in val_loader:
            preds = model(X_batch)
            loss = loss_func(preds, Y_batch)
            val_losses.append(loss)
        print("Valid CategoricalCrossEntropy : {:.3f}".format(torch.tensor(val_losses).mean()))

def MakePredictions(model, loader):
    preds, Y_shuffled = [], []
    for X_batch, Y_batch in loader:
        preds.append(model(X_batch))
        Y_shuffled.append(Y_batch)

    preds = torch.cat(preds).argmax(axis=-1)
    Y_shuffled = torch.cat(Y_shuffled)
    return Y_shuffled, preds

def TrainModelInBatchesV1(model, loss_func, optimizer, train_loader, val_loader, epochs=5):
    for i in range(epochs):
        losses = [] ## Record loss of each batch
        for X_batch, Y_batch in tqdm(train_loader):
            preds = model(X_batch) ## Make Predictions by forward pass through network

            loss = loss_func(preds, Y_batch) ## Calculate Loss
            losses.append(loss) ## Record Loss

            optimizer.zero_grad() ## Zero weights before calculating gradients
            loss.backward() ## Calculate Gradients
            optimizer.step() ## Update Weights

        print("Train CategoricalCrossEntropy : {:.3f}".format(torch.tensor(losses).mean()))
        CalcValLoss(model, loss_func, val_loader)

        Y_test_shuffled, test_preds = MakePredictions(model, val_loader)
        val_acc = accuracy_score(Y_test_shuffled, test_preds)
        print("Val  Accuracy : {:.3f}".format(val_acc))
    return val_acc

Below, we have initialized a dictionary named scheduler_val_accs that will hold the test accuracy of each learning rate schedule that we'll try. We'll also include constant learning rate results for comparison purposes.

In the next cell, we are actually training our network using the training function defined in the previous cell. We have initialized a number of epochs to 15 and the learning rate to 0.001. Followed by it, we have initialized our network, loss function, and optimizer. Then, we have called our training function with the necessary parameters to perform the training of the network. The function returns test accuracy which we have recorded in the dictionary. We are treating the test dataset as a validation dataset in our training process.

scheduler_val_accs = {}
from torch.optim import SGD, RMSprop, Adam

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)

val_acc = TrainModelInBatchesV1(conv_net, cross_entropy_loss, optimizer, train_loader, test_loader,epochs)
scheduler_val_accs["Constant Learning Rate"] = val_acc
100%|██████████| 469/469 [00:30<00:00, 15.62it/s]
Train CategoricalCrossEntropy : 2.281
Valid CategoricalCrossEntropy : 2.207
Val  Accuracy : 0.341
100%|██████████| 469/469 [00:29<00:00, 15.99it/s]
Train CategoricalCrossEntropy : 1.423
Valid CategoricalCrossEntropy : 0.830
Val  Accuracy : 0.697
100%|██████████| 469/469 [00:29<00:00, 15.85it/s]
Train CategoricalCrossEntropy : 0.716
Valid CategoricalCrossEntropy : 0.672
Val  Accuracy : 0.762
100%|██████████| 469/469 [00:29<00:00, 15.98it/s]
Train CategoricalCrossEntropy : 0.636
Valid CategoricalCrossEntropy : 0.625
Val  Accuracy : 0.778
100%|██████████| 469/469 [00:29<00:00, 15.80it/s]
Train CategoricalCrossEntropy : 0.600
Valid CategoricalCrossEntropy : 0.609
Val  Accuracy : 0.785
100%|██████████| 469/469 [00:29<00:00, 15.94it/s]
Train CategoricalCrossEntropy : 0.573
Valid CategoricalCrossEntropy : 0.572
Val  Accuracy : 0.796
100%|██████████| 469/469 [00:29<00:00, 15.68it/s]
Train CategoricalCrossEntropy : 0.559
Valid CategoricalCrossEntropy : 0.603
Val  Accuracy : 0.784
100%|██████████| 469/469 [00:29<00:00, 16.04it/s]
Train CategoricalCrossEntropy : 0.543
Valid CategoricalCrossEntropy : 0.546
Val  Accuracy : 0.807
100%|██████████| 469/469 [00:29<00:00, 15.80it/s]
Train CategoricalCrossEntropy : 0.529
Valid CategoricalCrossEntropy : 0.544
Val  Accuracy : 0.806
100%|██████████| 469/469 [00:29<00:00, 15.66it/s]
Train CategoricalCrossEntropy : 0.523
Valid CategoricalCrossEntropy : 0.563
Val  Accuracy : 0.791
100%|██████████| 469/469 [00:29<00:00, 15.69it/s]
Train CategoricalCrossEntropy : 0.517
Valid CategoricalCrossEntropy : 0.535
Val  Accuracy : 0.809
100%|██████████| 469/469 [00:31<00:00, 14.94it/s]
Train CategoricalCrossEntropy : 0.510
Valid CategoricalCrossEntropy : 0.535
Val  Accuracy : 0.810
100%|██████████| 469/469 [00:29<00:00, 15.72it/s]
Train CategoricalCrossEntropy : 0.503
Valid CategoricalCrossEntropy : 0.540
Val  Accuracy : 0.807
100%|██████████| 469/469 [00:29<00:00, 15.78it/s]
Train CategoricalCrossEntropy : 0.498
Valid CategoricalCrossEntropy : 0.523
Val  Accuracy : 0.813
100%|██████████| 469/469 [00:29<00:00, 15.78it/s]
Train CategoricalCrossEntropy : 0.491
Valid CategoricalCrossEntropy : 0.519
Val  Accuracy : 0.816

2. Step LR Scheduler

In this section, we are using the step LR scheduler available from Pytorch to change the learning rate during the training process. We have explained how we can code so that we can change learning after each epoch as well as after each batch.

Below, we have modified our training function which we have defined earlier. We have added an extra parameter named schedulers which accepts a list of schedulers. After completion of each epoch, we loop through schedulers and call step() method on it which will change the learning rate of an optimizer. The rest of the code is the same as our previous training function.

from tqdm import tqdm

def TrainModelInBatchesV2(model, loss_func, optimizer, schedulers, train_loader, val_loader, epochs=5):
    for i in range(epochs):
        losses = [] ## Record loss of each batch
        for X_batch, Y_batch in tqdm(train_loader):
            preds = model(X_batch) ## Make Predictions by forward pass through network

            loss = loss_func(preds, Y_batch) ## Calculate Loss
            losses.append(loss) ## Record Loss

            optimizer.zero_grad() ## Zero weights before calculating gradients
            loss.backward() ## Calculate Gradients
            optimizer.step() ## Update Weights

        for scheduler in schedulers: ## Apply Schedulers after complete epoch
            scheduler.step()

        print("Train CategoricalCrossEntropy : {:.3f}".format(torch.tensor(losses).mean()))
        CalcValLoss(model, loss_func, val_loader)

        Y_test_shuffled, test_preds = MakePredictions(model, val_loader)
        val_acc = accuracy_score(Y_test_shuffled, test_preds)
        print("Val  Accuracy : {:.3f}".format(val_acc))
    return val_acc

Below, we have trained our network by giving a step lr learning rate scheduler. All other network parameters are almost the same as our previous constant learning rate example. We have created step LR scheduler using StepLR() constructor available from lr_scheduler sub-module of optim sub-module of PyTorch. Below are important parameters of StepLR() constructor.

  • optimizer - We need to give optimizer instance first.
  • step_size - This parameter accepts integer value specifying after how many steps we need to change the learning rate. The step can be epoch or batch.
  • gamma - It accepts floating-point value specifying multiplicative factor of learning rate decay.
  • verbose - It accepts boolean values specifying whether to display messages when the learning rate changes or not.

In our case, we are have initialized step lr scheduler with a step size of 2 hence it'll decrease the learning rate by a factor of 0.95 after every 2 epochs.

In the next cell after the training cell below, we have also collected values of learning rate after each epoch and plotted them to show how step LR scheduler changes learning rate internally.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.StepLR(optimizer, step_size=2, gamma=0.95, verbose=True)

val_acc = TrainModelInBatchesV2(conv_net, cross_entropy_loss, optimizer, [scheduler], train_loader, test_loader,epochs)
scheduler_val_accs["Step LR Scheduler Epochs"] = val_acc
Adjusting learning rate of group 0 to 1.0000e-03.
100%|██████████| 469/469 [00:29<00:00, 16.08it/s]
Adjusting learning rate of group 0 to 1.0000e-03.
Train CategoricalCrossEntropy : 2.295
Valid CategoricalCrossEntropy : 2.273
Val  Accuracy : 0.132
100%|██████████| 469/469 [00:29<00:00, 16.02it/s]
Adjusting learning rate of group 0 to 9.5000e-04.
Train CategoricalCrossEntropy : 1.861
Valid CategoricalCrossEntropy : 1.010
Val  Accuracy : 0.662
100%|██████████| 469/469 [00:29<00:00, 15.64it/s]
Adjusting learning rate of group 0 to 9.5000e-04.
Train CategoricalCrossEntropy : 0.788
Valid CategoricalCrossEntropy : 0.720
Val  Accuracy : 0.745
100%|██████████| 469/469 [00:30<00:00, 15.53it/s]
Adjusting learning rate of group 0 to 9.0250e-04.
Train CategoricalCrossEntropy : 0.653
Valid CategoricalCrossEntropy : 0.651
Val  Accuracy : 0.765
100%|██████████| 469/469 [00:29<00:00, 15.64it/s]
Adjusting learning rate of group 0 to 9.0250e-04.
Train CategoricalCrossEntropy : 0.605
Valid CategoricalCrossEntropy : 0.624
Val  Accuracy : 0.782
100%|██████████| 469/469 [00:30<00:00, 15.27it/s]
Adjusting learning rate of group 0 to 8.5737e-04.
Train CategoricalCrossEntropy : 0.580
Valid CategoricalCrossEntropy : 0.583
Val  Accuracy : 0.795
100%|██████████| 469/469 [00:29<00:00, 16.03it/s]
Adjusting learning rate of group 0 to 8.5737e-04.
Train CategoricalCrossEntropy : 0.559
Valid CategoricalCrossEntropy : 0.594
Val  Accuracy : 0.778
100%|██████████| 469/469 [00:29<00:00, 15.71it/s]
Adjusting learning rate of group 0 to 8.1451e-04.
Train CategoricalCrossEntropy : 0.545
Valid CategoricalCrossEntropy : 0.578
Val  Accuracy : 0.795
100%|██████████| 469/469 [00:29<00:00, 15.63it/s]
Adjusting learning rate of group 0 to 8.1451e-04.
Train CategoricalCrossEntropy : 0.531
Valid CategoricalCrossEntropy : 0.559
Val  Accuracy : 0.799
100%|██████████| 469/469 [00:30<00:00, 15.61it/s]
Adjusting learning rate of group 0 to 7.7378e-04.
Train CategoricalCrossEntropy : 0.525
Valid CategoricalCrossEntropy : 0.552
Val  Accuracy : 0.797
100%|██████████| 469/469 [00:30<00:00, 15.55it/s]
Adjusting learning rate of group 0 to 7.7378e-04.
Train CategoricalCrossEntropy : 0.514
Valid CategoricalCrossEntropy : 0.529
Val  Accuracy : 0.813
100%|██████████| 469/469 [00:29<00:00, 15.74it/s]
Adjusting learning rate of group 0 to 7.3509e-04.
Train CategoricalCrossEntropy : 0.508
Valid CategoricalCrossEntropy : 0.529
Val  Accuracy : 0.809
100%|██████████| 469/469 [00:30<00:00, 15.30it/s]
Adjusting learning rate of group 0 to 7.3509e-04.
Train CategoricalCrossEntropy : 0.502
Valid CategoricalCrossEntropy : 0.537
Val  Accuracy : 0.803
100%|██████████| 469/469 [00:30<00:00, 15.28it/s]
Adjusting learning rate of group 0 to 6.9834e-04.
Train CategoricalCrossEntropy : 0.498
Valid CategoricalCrossEntropy : 0.522
Val  Accuracy : 0.809
100%|██████████| 469/469 [00:32<00:00, 14.60it/s]
Adjusting learning rate of group 0 to 6.9834e-04.
Train CategoricalCrossEntropy : 0.492
Valid CategoricalCrossEntropy : 0.529
Val  Accuracy : 0.808
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.StepLR(optimizer, step_size=2, gamma=0.95)

lrs = []
for i in range(epochs):
    lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
    optimizer.step()
    scheduler.step()

plt.scatter(range(epochs), lrs)
plt.title("Step LR Scheduler")
plt.xlabel("Epochs")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

Below, we have created another training function that has the majority of the code the same as our original training function with the only change that we have introduced schedulers parameters that accepts a list of schedulers. After completion of each batch, we are executing all schedulers one by one by calling step() function on them. This training function will be useful in cases where we want to change the learning rate after each batch.

def TrainModelInBatchesV3(model, loss_func, optimizer, schedulers, train_loader, val_loader, epochs=5):
    for i in range(epochs):
        losses = [] ## Record loss of each batch
        for X_batch, Y_batch in tqdm(train_loader):
            preds = model(X_batch) ## Make Predictions by forward pass through network

            loss = loss_func(preds, Y_batch) ## Calculate Loss
            losses.append(loss) ## Record Loss

            optimizer.zero_grad() ## Zero weights before calculating gradients
            loss.backward() ## Calculate Gradients
            optimizer.step() ## Update Weights

            for scheduler in schedulers: ## Apply Schedulers after complete batch
                scheduler.step()

        print("Train CategoricalCrossEntropy : {:.3f}".format(torch.tensor(losses).mean()))
        CalcValLoss(model, loss_func, val_loader)

        Y_test_shuffled, test_preds = MakePredictions(model, val_loader)
        val_acc = accuracy_score(Y_test_shuffled, test_preds)
        print("Val  Accuracy : {:.3f}".format(val_acc))
    return val_acc

Below, we have again used step LR scheduler but this time we have used it to change the learning rate after each batch. The majority of changes are the same with only changes step lr parameters. For this example, we have set step size to 20 and gamma to 0.99. This will inform the scheduler to decrease learning by a factor of 0.99 after every 20 batches.

We have also plotted a chart showing how the learning rate changes during the training process for explanation purposes.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.StepLR(optimizer, step_size=20, gamma=0.99)

val_acc = TrainModelInBatchesV3(conv_net, cross_entropy_loss, optimizer, [scheduler], train_loader, test_loader,epochs)
scheduler_val_accs["Step LR Scheduler Batches"] = val_acc
100%|██████████| 469/469 [00:28<00:00, 16.44it/s]
Train CategoricalCrossEntropy : 2.298
Valid CategoricalCrossEntropy : 2.289
Val  Accuracy : 0.206
100%|██████████| 469/469 [00:28<00:00, 16.34it/s]
Train CategoricalCrossEntropy : 2.251
Valid CategoricalCrossEntropy : 2.173
Val  Accuracy : 0.409
100%|██████████| 469/469 [00:30<00:00, 15.52it/s]
Train CategoricalCrossEntropy : 1.852
Valid CategoricalCrossEntropy : 1.362
Val  Accuracy : 0.641
100%|██████████| 469/469 [00:30<00:00, 15.30it/s]
Train CategoricalCrossEntropy : 1.062
Valid CategoricalCrossEntropy : 0.894
Val  Accuracy : 0.702
100%|██████████| 469/469 [00:30<00:00, 15.32it/s]
Train CategoricalCrossEntropy : 0.817
Valid CategoricalCrossEntropy : 0.776
Val  Accuracy : 0.724
100%|██████████| 469/469 [00:31<00:00, 14.93it/s]
Train CategoricalCrossEntropy : 0.732
Valid CategoricalCrossEntropy : 0.716
Val  Accuracy : 0.744
100%|██████████| 469/469 [00:31<00:00, 15.12it/s]
Train CategoricalCrossEntropy : 0.688
Valid CategoricalCrossEntropy : 0.690
Val  Accuracy : 0.749
100%|██████████| 469/469 [00:30<00:00, 15.39it/s]
Train CategoricalCrossEntropy : 0.662
Valid CategoricalCrossEntropy : 0.670
Val  Accuracy : 0.760
100%|██████████| 469/469 [00:31<00:00, 15.06it/s]
Train CategoricalCrossEntropy : 0.644
Valid CategoricalCrossEntropy : 0.657
Val  Accuracy : 0.762
100%|██████████| 469/469 [00:31<00:00, 15.09it/s]
Train CategoricalCrossEntropy : 0.632
Valid CategoricalCrossEntropy : 0.643
Val  Accuracy : 0.769
100%|██████████| 469/469 [00:30<00:00, 15.13it/s]
Train CategoricalCrossEntropy : 0.623
Valid CategoricalCrossEntropy : 0.638
Val  Accuracy : 0.770
100%|██████████| 469/469 [00:30<00:00, 15.33it/s]
Train CategoricalCrossEntropy : 0.616
Valid CategoricalCrossEntropy : 0.632
Val  Accuracy : 0.774
100%|██████████| 469/469 [00:30<00:00, 15.31it/s]
Train CategoricalCrossEntropy : 0.611
Valid CategoricalCrossEntropy : 0.631
Val  Accuracy : 0.774
100%|██████████| 469/469 [00:31<00:00, 15.04it/s]
Train CategoricalCrossEntropy : 0.608
Valid CategoricalCrossEntropy : 0.624
Val  Accuracy : 0.775
100%|██████████| 469/469 [00:31<00:00, 14.85it/s]
Train CategoricalCrossEntropy : 0.605
Valid CategoricalCrossEntropy : 0.627
Val  Accuracy : 0.776
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.StepLR(optimizer, step_size=20, gamma=0.99)

lrs = []
for i in range(epochs):
    for j in range(len(train_loader)):
        lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
        optimizer.step()
        scheduler.step()

plt.scatter(range(epochs*len(train_loader)), lrs)
plt.title("Step LR Scheduler")
plt.xlabel("Epochs")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

3. MultiStep LR Scheduler

In this section, we have trained our network using a multi-step lr scheduler. We can create multi-step LR using MultiStepLR() constructor. It takes a list of the below-mentioned parameters.

  • optimizer - The first parameter is an instance of the optimizer.
  • milestones - This parameter accepts a list of integers specifying boundaries of epochs till which to apply a particular learning rate and then change it. This will become more clear when we explain it with the example below.
  • gamma - This is a float value specifying multiplicative factor.

In our case, we have initialized multi-step LR with milestones of [2,5,9] and gamma of 0.95. This will inform the scheduler to use the initial learning rate for the first 2 epochs (0,1) and then reduce the learning rate by a multiplicative factor of 0.95. Then, use reduced learning rate for the next 3 epochs (2,3,4) and reduce the learning rate again by a factor of 0.95. Then use reduced learning rate for the next 4 epochs (5,6,7,8) and reduce the learning rate again by a factor of 0.95. At last, use reduced learning rate for all remaining epochs (9,10,11,12,13,14).

We have also plotted learning rate changes over time in the next cell after training for explanation purposes.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.MultiStepLR(optimizer, milestones=[2,5,9], gamma=0.95)

val_acc = TrainModelInBatchesV2(conv_net, cross_entropy_loss, optimizer, [scheduler], train_loader, test_loader,epochs)
scheduler_val_accs["MultiStep LR Scheduler Epochs"] = val_acc
100%|██████████| 469/469 [00:30<00:00, 15.36it/s]
Train CategoricalCrossEntropy : 2.099
Valid CategoricalCrossEntropy : 1.315
Val  Accuracy : 0.643
100%|██████████| 469/469 [00:28<00:00, 16.20it/s]
Train CategoricalCrossEntropy : 0.831
Valid CategoricalCrossEntropy : 0.712
Val  Accuracy : 0.742
100%|██████████| 469/469 [00:29<00:00, 15.86it/s]
Train CategoricalCrossEntropy : 0.650
Valid CategoricalCrossEntropy : 0.643
Val  Accuracy : 0.772
100%|██████████| 469/469 [00:31<00:00, 14.78it/s]
Train CategoricalCrossEntropy : 0.604
Valid CategoricalCrossEntropy : 0.608
Val  Accuracy : 0.784
100%|██████████| 469/469 [00:28<00:00, 16.19it/s]
Train CategoricalCrossEntropy : 0.584
Valid CategoricalCrossEntropy : 0.617
Val  Accuracy : 0.772
100%|██████████| 469/469 [00:31<00:00, 14.83it/s]
Train CategoricalCrossEntropy : 0.559
Valid CategoricalCrossEntropy : 0.609
Val  Accuracy : 0.788
100%|██████████| 469/469 [00:28<00:00, 16.38it/s]
Train CategoricalCrossEntropy : 0.545
Valid CategoricalCrossEntropy : 0.555
Val  Accuracy : 0.802
100%|██████████| 469/469 [00:31<00:00, 14.72it/s]
Train CategoricalCrossEntropy : 0.536
Valid CategoricalCrossEntropy : 0.563
Val  Accuracy : 0.802
100%|██████████| 469/469 [00:28<00:00, 16.36it/s]
Train CategoricalCrossEntropy : 0.526
Valid CategoricalCrossEntropy : 0.539
Val  Accuracy : 0.807
100%|██████████| 469/469 [00:32<00:00, 14.54it/s]
Train CategoricalCrossEntropy : 0.516
Valid CategoricalCrossEntropy : 0.538
Val  Accuracy : 0.807
100%|██████████| 469/469 [00:28<00:00, 16.18it/s]
Train CategoricalCrossEntropy : 0.512
Valid CategoricalCrossEntropy : 0.539
Val  Accuracy : 0.805
100%|██████████| 469/469 [00:32<00:00, 14.56it/s]
Train CategoricalCrossEntropy : 0.502
Valid CategoricalCrossEntropy : 0.517
Val  Accuracy : 0.817
100%|██████████| 469/469 [00:29<00:00, 16.11it/s]
Train CategoricalCrossEntropy : 0.501
Valid CategoricalCrossEntropy : 0.536
Val  Accuracy : 0.811
100%|██████████| 469/469 [00:32<00:00, 14.22it/s]
Train CategoricalCrossEntropy : 0.495
Valid CategoricalCrossEntropy : 0.528
Val  Accuracy : 0.805
100%|██████████| 469/469 [00:29<00:00, 15.81it/s]
Train CategoricalCrossEntropy : 0.489
Valid CategoricalCrossEntropy : 0.518
Val  Accuracy : 0.814
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.MultiStepLR(optimizer, milestones=[2,5,9], gamma=0.95)

lrs = []
for i in range(epochs):
    lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
    optimizer.step()
    scheduler.step()

plt.scatter(range(epochs), lrs)
plt.title("Multi Step LR Scheduler")
plt.xlabel("Epochs")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

4. Multiplicative LR Scheduler

In this section, we have trained our network using SGD with a multiplicative learning rate scheduler. We can create a multiplicative LR scheduler using MultiplicativeLR() constructor from lr_scheduler module. It multiplies the learning rate by a specified value after the completion of each epoch to reduce the learning rate. Below are important parameters of the constructor.

  • optimizer - We need to provide optimizer object as first parameter.
  • lr_lambda - This parameter accepts function that returns multiplication factor for each epoch.

In our case, we have created a multiplicative learning rate scheduler with a function that multiplies the current learning rate by 0.95 after the completion of each epoch to reduce the learning rate.

In the next cell after the training cell, we have also plotted how the learning rate changes during training if we use a multiplicative learning rate scheduler.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.MultiplicativeLR(optimizer, lr_lambda=lambda epoch: 0.95)

val_acc = TrainModelInBatchesV2(conv_net, cross_entropy_loss, optimizer, [scheduler], train_loader, test_loader,epochs)
scheduler_val_accs["Multiplicative LR Scheduler Epochs"] = val_acc
100%|██████████| 469/469 [00:29<00:00, 15.78it/s]
Train CategoricalCrossEntropy : 2.125
Valid CategoricalCrossEntropy : 1.443
Val  Accuracy : 0.640
100%|██████████| 469/469 [00:34<00:00, 13.79it/s]
Train CategoricalCrossEntropy : 0.876
Valid CategoricalCrossEntropy : 0.716
Val  Accuracy : 0.743
100%|██████████| 469/469 [00:30<00:00, 15.59it/s]
Train CategoricalCrossEntropy : 0.646
Valid CategoricalCrossEntropy : 0.641
Val  Accuracy : 0.775
100%|██████████| 469/469 [00:33<00:00, 14.01it/s]
Train CategoricalCrossEntropy : 0.586
Valid CategoricalCrossEntropy : 0.613
Val  Accuracy : 0.777
100%|██████████| 469/469 [00:29<00:00, 15.92it/s]
Train CategoricalCrossEntropy : 0.557
Valid CategoricalCrossEntropy : 0.560
Val  Accuracy : 0.801
100%|██████████| 469/469 [00:33<00:00, 13.93it/s]
Train CategoricalCrossEntropy : 0.539
Valid CategoricalCrossEntropy : 0.546
Val  Accuracy : 0.804
100%|██████████| 469/469 [00:29<00:00, 15.85it/s]
Train CategoricalCrossEntropy : 0.524
Valid CategoricalCrossEntropy : 0.553
Val  Accuracy : 0.799
100%|██████████| 469/469 [00:32<00:00, 14.25it/s]
Train CategoricalCrossEntropy : 0.513
Valid CategoricalCrossEntropy : 0.529
Val  Accuracy : 0.808
100%|██████████| 469/469 [00:29<00:00, 15.77it/s]
Train CategoricalCrossEntropy : 0.505
Valid CategoricalCrossEntropy : 0.551
Val  Accuracy : 0.796
100%|██████████| 469/469 [00:33<00:00, 14.04it/s]
Train CategoricalCrossEntropy : 0.499
Valid CategoricalCrossEntropy : 0.521
Val  Accuracy : 0.814
100%|██████████| 469/469 [00:29<00:00, 15.79it/s]
Train CategoricalCrossEntropy : 0.491
Valid CategoricalCrossEntropy : 0.511
Val  Accuracy : 0.820
100%|██████████| 469/469 [00:33<00:00, 13.99it/s]
Train CategoricalCrossEntropy : 0.485
Valid CategoricalCrossEntropy : 0.512
Val  Accuracy : 0.817
100%|██████████| 469/469 [00:29<00:00, 16.00it/s]
Train CategoricalCrossEntropy : 0.480
Valid CategoricalCrossEntropy : 0.509
Val  Accuracy : 0.817
100%|██████████| 469/469 [00:32<00:00, 14.37it/s]
Train CategoricalCrossEntropy : 0.478
Valid CategoricalCrossEntropy : 0.515
Val  Accuracy : 0.815
100%|██████████| 469/469 [00:29<00:00, 15.92it/s]
Train CategoricalCrossEntropy : 0.474
Valid CategoricalCrossEntropy : 0.504
Val  Accuracy : 0.822
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.MultiplicativeLR(optimizer, lr_lambda=lambda epoch: 0.95)

lrs = []
for i in range(epochs):
    lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
    optimizer.step()
    scheduler.step()


plt.scatter(range(epochs), lrs)
plt.title("Multiplicative LR Scheduler")
plt.xlabel("Epochs")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

5. Lambda LR Scheduler

In this section, we have trained our network using a lambda learning rate scheduler which sets the learning rate to the initial learning rate times output of a lambda function. We can create a lambda learning rate scheduler using LambdaLR() constructor available from lr_schedule module. Below are important parameters of the constructor.

  • optimizer - The first parameter should be an instance of an optimizer.
  • lr_lambda - This parameter accepts a function whose output is multiplied with the initial learning rate to generate a new learning rate after each epoch.

In our case we have initialize LambdaLR() with lambda epoch: 0.95**epoch function. This will multiply the initial learning rate of 0.001 by 0.95**epoch after each epoch where epoch is epoch number.

In the next cell, we have also plotted how the learning rate will change during the training process if we use the lambda learning rate scheduler.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.LambdaLR(optimizer, lambda epoch: 0.95**epoch)

val_acc = TrainModelInBatchesV2(conv_net, cross_entropy_loss, optimizer, [scheduler], train_loader, test_loader,epochs)
scheduler_val_accs["Lambda LR Scheduler Epochs"] = val_acc
100%|██████████| 469/469 [00:29<00:00, 15.87it/s]
Train CategoricalCrossEntropy : 2.197
Valid CategoricalCrossEntropy : 1.705
Val  Accuracy : 0.627
100%|██████████| 469/469 [00:31<00:00, 15.11it/s]
Train CategoricalCrossEntropy : 0.951
Valid CategoricalCrossEntropy : 0.756
Val  Accuracy : 0.726
100%|██████████| 469/469 [00:30<00:00, 15.44it/s]
Train CategoricalCrossEntropy : 0.676
Valid CategoricalCrossEntropy : 0.670
Val  Accuracy : 0.756
100%|██████████| 469/469 [00:34<00:00, 13.57it/s]
Train CategoricalCrossEntropy : 0.624
Valid CategoricalCrossEntropy : 0.624
Val  Accuracy : 0.774
100%|██████████| 469/469 [00:29<00:00, 15.92it/s]
Train CategoricalCrossEntropy : 0.594
Valid CategoricalCrossEntropy : 0.647
Val  Accuracy : 0.767
100%|██████████| 469/469 [00:31<00:00, 14.90it/s]
Train CategoricalCrossEntropy : 0.572
Valid CategoricalCrossEntropy : 0.598
Val  Accuracy : 0.783
100%|██████████| 469/469 [00:30<00:00, 15.44it/s]
Train CategoricalCrossEntropy : 0.555
Valid CategoricalCrossEntropy : 0.583
Val  Accuracy : 0.790
100%|██████████| 469/469 [00:30<00:00, 15.46it/s]
Train CategoricalCrossEntropy : 0.544
Valid CategoricalCrossEntropy : 0.547
Val  Accuracy : 0.805
100%|██████████| 469/469 [00:30<00:00, 15.32it/s]
Train CategoricalCrossEntropy : 0.534
Valid CategoricalCrossEntropy : 0.598
Val  Accuracy : 0.783
100%|██████████| 469/469 [00:29<00:00, 15.77it/s]
Train CategoricalCrossEntropy : 0.523
Valid CategoricalCrossEntropy : 0.552
Val  Accuracy : 0.804
100%|██████████| 469/469 [00:31<00:00, 14.82it/s]
Train CategoricalCrossEntropy : 0.516
Valid CategoricalCrossEntropy : 0.537
Val  Accuracy : 0.812
100%|██████████| 469/469 [00:29<00:00, 15.83it/s]
Train CategoricalCrossEntropy : 0.507
Valid CategoricalCrossEntropy : 0.538
Val  Accuracy : 0.811
100%|██████████| 469/469 [00:34<00:00, 13.49it/s]
Train CategoricalCrossEntropy : 0.502
Valid CategoricalCrossEntropy : 0.538
Val  Accuracy : 0.803
100%|██████████| 469/469 [00:35<00:00, 13.22it/s]
Train CategoricalCrossEntropy : 0.497
Valid CategoricalCrossEntropy : 0.528
Val  Accuracy : 0.813
100%|██████████| 469/469 [00:34<00:00, 13.60it/s]
Train CategoricalCrossEntropy : 0.491
Valid CategoricalCrossEntropy : 0.523
Val  Accuracy : 0.817
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.LambdaLR(optimizer, lambda epoch: 0.95**epoch)

lrs = []
for i in range(epochs):
    lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
    optimizer.step()
    scheduler.step()

plt.scatter(range(epochs), lrs)
plt.title("Lambda LR Scheduler")
plt.xlabel("Epochs")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

6. Exponential LR Scheduler

In this section, we have trained our network using SGD with an exponential LR scheduler. We can create exponential LR scheduler using ExponentialLR() constructor available from lr_scheduler sub-module. It decays the learning rate exponentially based on the decay rate given as input. Below are important parameters of ExponentialLR() constructor.

  • optimizer - The first parameter is an instance of the optimizer.
  • gamma - This is a multiplicative factor that will be raised to power based on epoch number and multiplied by the initial learning rate to get a new learning rate.

In our case, we have created an exponential LR scheduler with gamma set to 0.7. The initial learning rate is 0.001. The learning rate for first epoch will be 0.001 * gamma ^ 0 = 0.001. For second epoch, it'll be 0.001 * gamma^1 = 0.0007. For the third epoch, it'll be 0.001 * gamma^2 = 0.00049 and so on for upcoming epochs.

In the next cell after training, we have also plotted a chart showing how the learning rate changes over time during training if we use an exponential learning rate scheduler.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.ExponentialLR(optimizer, gamma=0.7)

val_acc = TrainModelInBatchesV2(conv_net, cross_entropy_loss, optimizer, [scheduler], train_loader, test_loader,epochs)
scheduler_val_accs["Exponential LR Scheduler Epochs"] = val_acc
100%|██████████| 469/469 [00:33<00:00, 14.20it/s]
Train CategoricalCrossEntropy : 2.231
Valid CategoricalCrossEntropy : 1.941
Val  Accuracy : 0.542
100%|██████████| 469/469 [00:38<00:00, 12.28it/s]
Train CategoricalCrossEntropy : 1.208
Valid CategoricalCrossEntropy : 0.832
Val  Accuracy : 0.701
100%|██████████| 469/469 [00:32<00:00, 14.54it/s]
Train CategoricalCrossEntropy : 0.760
Valid CategoricalCrossEntropy : 0.734
Val  Accuracy : 0.739
100%|██████████| 469/469 [00:37<00:00, 12.59it/s]
Train CategoricalCrossEntropy : 0.693
Valid CategoricalCrossEntropy : 0.699
Val  Accuracy : 0.751
100%|██████████| 469/469 [00:33<00:00, 13.94it/s]
Train CategoricalCrossEntropy : 0.661
Valid CategoricalCrossEntropy : 0.674
Val  Accuracy : 0.763
100%|██████████| 469/469 [00:35<00:00, 13.18it/s]
Train CategoricalCrossEntropy : 0.643
Valid CategoricalCrossEntropy : 0.664
Val  Accuracy : 0.764
100%|██████████| 469/469 [00:33<00:00, 14.14it/s]
Train CategoricalCrossEntropy : 0.633
Valid CategoricalCrossEntropy : 0.651
Val  Accuracy : 0.771
100%|██████████| 469/469 [00:35<00:00, 13.30it/s]
Train CategoricalCrossEntropy : 0.625
Valid CategoricalCrossEntropy : 0.646
Val  Accuracy : 0.772
100%|██████████| 469/469 [00:33<00:00, 14.06it/s]
Train CategoricalCrossEntropy : 0.621
Valid CategoricalCrossEntropy : 0.641
Val  Accuracy : 0.772
100%|██████████| 469/469 [00:36<00:00, 12.71it/s]
Train CategoricalCrossEntropy : 0.617
Valid CategoricalCrossEntropy : 0.640
Val  Accuracy : 0.774
100%|██████████| 469/469 [00:31<00:00, 14.76it/s]
Train CategoricalCrossEntropy : 0.615
Valid CategoricalCrossEntropy : 0.643
Val  Accuracy : 0.774
100%|██████████| 469/469 [00:33<00:00, 13.99it/s]
Train CategoricalCrossEntropy : 0.614
Valid CategoricalCrossEntropy : 0.636
Val  Accuracy : 0.774
100%|██████████| 469/469 [00:37<00:00, 12.65it/s]
Train CategoricalCrossEntropy : 0.613
Valid CategoricalCrossEntropy : 0.639
Val  Accuracy : 0.775
100%|██████████| 469/469 [00:32<00:00, 14.56it/s]
Train CategoricalCrossEntropy : 0.612
Valid CategoricalCrossEntropy : 0.641
Val  Accuracy : 0.775
100%|██████████| 469/469 [00:33<00:00, 14.17it/s]
Train CategoricalCrossEntropy : 0.612
Valid CategoricalCrossEntropy : 0.635
Val  Accuracy : 0.775
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.ExponentialLR(optimizer, gamma=0.7)

lrs = []
for i in range(epochs):
    lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
    optimizer.step()
    scheduler.step()


plt.scatter(range(epochs), lrs)
plt.title("Exponential LR Scheduler")
plt.xlabel("Epochs")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

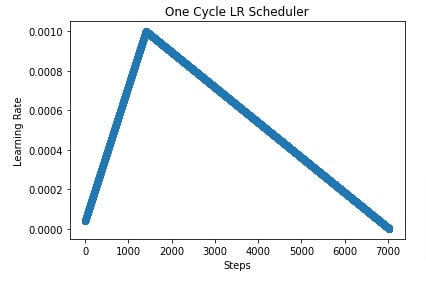

7. One Cycle LR Scheduler

In this section, we have used one cycle LR scheduler to train our network. This LR scheduler changes the learning rate after each batch of data. As the name suggests, it changes the learning rate in cycle mode. It is inspired by the paper - Super-Convergence: Very Fast Training of Neural Networks Using Large Learning Rates. We can create it using OneCycleLR() constructor. Below are important parameters of the constructor.

  • optimizer - The first parameter is the optimizer instance as usual.
  • max_lr - This is the maximum learning rate that the scheduler should go during the cycle.
  • steps_per_epoch - This parameter accepts integer values specifying a total number of batches per epoch.
  • pct_start - This parameter accepts float value in the range [0,1]. The learning rate increases to the max learning rate after the percentage of batches specified using this parameter has passed. The learning rate then starts decreasing. Default is 0.3 which means that maximum learning rate will be achieved at 30% of batches and then it'll start decreasing.
  • anneal_strategy - This parameter accepts one of the below strings specifying how to anneal the learning rate.
    • 'linear' - It anneals the learning rate in linear line fashion.
    • 'cosine' - It anneals the learning rate in a cosine cycle-like fashion. Default.
  • epochs - This parameter accepts integers specifying the number of epochs.
  • div_factor - This parameter accepts float value that is used to determine the initial learning rate to start a cycle. The default value is 25.
    • Initial learning rate = maximum learning rate / div_factor
  • final_div_factor - This parameter accepts float specifying minimum learning rate should go at the end of the cycle. Default value is 1e4.
    • minimum learning rate = initial learning rate / final_div_factor

In our case, we have initialized OneCycleLR with a max learning rate of 0.001.

In the next cell, we have plotted how the learning rate changes over time during training. In the cell after that, we have also plotted another learning rate chart where we have shown how learning rate changes if we use 'linear' annealing strategy instead of 'cosine'.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.OneCycleLR(optimizer, max_lr=learning_rate,
                                    steps_per_epoch=len(train_loader), epochs=epochs)

val_acc = TrainModelInBatchesV3(conv_net, cross_entropy_loss, optimizer, [scheduler], train_loader, test_loader,epochs)
scheduler_val_accs["One Cycle LR Scheduler Batches"] = val_acc
100%|██████████| 469/469 [00:29<00:00, 15.87it/s]
Train CategoricalCrossEntropy : 2.025
Valid CategoricalCrossEntropy : 0.893
Val  Accuracy : 0.671
100%|██████████| 469/469 [00:29<00:00, 16.09it/s]
Train CategoricalCrossEntropy : 0.686
Valid CategoricalCrossEntropy : 0.647
Val  Accuracy : 0.777
100%|██████████| 469/469 [00:29<00:00, 15.73it/s]
Train CategoricalCrossEntropy : 0.582
Valid CategoricalCrossEntropy : 0.583
Val  Accuracy : 0.787
100%|██████████| 469/469 [00:36<00:00, 12.71it/s]
Train CategoricalCrossEntropy : 0.526
Valid CategoricalCrossEntropy : 0.532
Val  Accuracy : 0.809
100%|██████████| 469/469 [00:34<00:00, 13.64it/s]
Train CategoricalCrossEntropy : 0.492
Valid CategoricalCrossEntropy : 0.526
Val  Accuracy : 0.812
100%|██████████| 469/469 [00:32<00:00, 14.28it/s]
Train CategoricalCrossEntropy : 0.474
Valid CategoricalCrossEntropy : 0.494
Val  Accuracy : 0.825
100%|██████████| 469/469 [00:31<00:00, 14.74it/s]
Train CategoricalCrossEntropy : 0.452
Valid CategoricalCrossEntropy : 0.466
Val  Accuracy : 0.834
100%|██████████| 469/469 [00:37<00:00, 12.60it/s]
Train CategoricalCrossEntropy : 0.433
Valid CategoricalCrossEntropy : 0.445
Val  Accuracy : 0.843
100%|██████████| 469/469 [00:31<00:00, 14.73it/s]
Train CategoricalCrossEntropy : 0.420
Valid CategoricalCrossEntropy : 0.436
Val  Accuracy : 0.847
100%|██████████| 469/469 [00:30<00:00, 15.61it/s]
Train CategoricalCrossEntropy : 0.407
Valid CategoricalCrossEntropy : 0.434
Val  Accuracy : 0.850
100%|██████████| 469/469 [00:35<00:00, 13.08it/s]
Train CategoricalCrossEntropy : 0.396
Valid CategoricalCrossEntropy : 0.435
Val  Accuracy : 0.846
100%|██████████| 469/469 [00:30<00:00, 15.55it/s]
Train CategoricalCrossEntropy : 0.387
Valid CategoricalCrossEntropy : 0.409
Val  Accuracy : 0.857
100%|██████████| 469/469 [00:30<00:00, 15.17it/s]
Train CategoricalCrossEntropy : 0.378
Valid CategoricalCrossEntropy : 0.402
Val  Accuracy : 0.859
100%|██████████| 469/469 [00:30<00:00, 15.28it/s]
Train CategoricalCrossEntropy : 0.373
Valid CategoricalCrossEntropy : 0.402
Val  Accuracy : 0.859
100%|██████████| 469/469 [00:36<00:00, 12.74it/s]
Train CategoricalCrossEntropy : 0.370
Valid CategoricalCrossEntropy : 0.404
Val  Accuracy : 0.861
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.OneCycleLR(optimizer, max_lr=learning_rate,
                                    steps_per_epoch=len(train_loader), epochs=epochs)

lrs = []
for i in range(epochs):
    for j in range(len(train_loader)):
        lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
        optimizer.step()
        scheduler.step()


plt.scatter(range(epochs*len(train_loader)), lrs)
plt.title("One Cycle LR Scheduler")
plt.xlabel("Steps")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.OneCycleLR(optimizer, max_lr=learning_rate,
                                    steps_per_epoch=len(train_loader),
                                    pct_start=0.2, anneal_strategy="linear",epochs=epochs)

lrs = []
for i in range(epochs):
    for j in range(len(train_loader)):
        lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
        optimizer.step()
        scheduler.step()


plt.scatter(range(epochs*len(train_loader)), lrs)
plt.title("One Cycle LR Scheduler")
plt.xlabel("Steps")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

8. Cyclic LR Scheduler

In this section, we have introduced cyclical learning rate schedules which increase and decrease learning in a cyclical fashion during training. It is inspired by the paper - Cyclical Learning Rates for Training Neural Networks. Unlike one cycle LR scheduler from the previous section which has only one cycle, cyclic LR scheduler has many cycles. We can create a cyclic LR scheduler using CyclicLR() constructor. Below are important parameters of CyclicLR() constructor.

  • optimizer - The first parameter to the scheduler is the optimizer instance as usual.
  • base_lr - This is the minimum learning rate at which the cycle starts.
  • max_lr - This is the maximum learning rate of the cycle.
  • step_size_up - This parameter accepts integer value specifying for how many batches increase the learning rate to take from base lr to max LR.
  • step_size_down - This parameter accepts integer value specifying for how many batches to decrease the learning rate from max LR.

In our case, we have initialized CyclicLR() with a base learning rate that is third of maximum learning rate, step size up of 100, and step size down to total batches minus 100. This will start with the initial learning rate which is a third of the maximum learning rate, it'll reach the maximum learning rate at 100 batches, and then it'll keep decreasing the learning rate till all batches of the data loader are completed. This is considered one cycle. The same cycle will be repeated for all epochs.

In the next cells, we have plotted how learning rate changes during training if we use a cyclic learning rate scheduler.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.CyclicLR(optimizer, base_lr=learning_rate/3,
                                  max_lr=learning_rate, step_size_up=100,
                                  step_size_down=len(train_loader)-100)

val_acc = TrainModelInBatchesV3(conv_net, cross_entropy_loss, optimizer, [scheduler], train_loader, test_loader,epochs)
scheduler_val_accs["Cyclic LR Scheduler Batches"] = val_acc
100%|██████████| 469/469 [00:29<00:00, 15.96it/s]
Train CategoricalCrossEntropy : 1.196
Valid CategoricalCrossEntropy : 0.663
Val  Accuracy : 0.765
100%|██████████| 469/469 [00:29<00:00, 16.06it/s]
Train CategoricalCrossEntropy : 0.580
Valid CategoricalCrossEntropy : 0.579
Val  Accuracy : 0.784
100%|██████████| 469/469 [00:29<00:00, 15.85it/s]
Train CategoricalCrossEntropy : 0.534
Valid CategoricalCrossEntropy : 0.575
Val  Accuracy : 0.789
100%|██████████| 469/469 [00:35<00:00, 13.37it/s]
Train CategoricalCrossEntropy : 0.510
Valid CategoricalCrossEntropy : 0.515
Val  Accuracy : 0.815
100%|██████████| 469/469 [00:29<00:00, 16.00it/s]
Train CategoricalCrossEntropy : 0.495
Valid CategoricalCrossEntropy : 0.499
Val  Accuracy : 0.823
100%|██████████| 469/469 [00:30<00:00, 15.30it/s]
Train CategoricalCrossEntropy : 0.472
Valid CategoricalCrossEntropy : 0.497
Val  Accuracy : 0.819
100%|██████████| 469/469 [00:29<00:00, 16.01it/s]
Train CategoricalCrossEntropy : 0.464
Valid CategoricalCrossEntropy : 0.475
Val  Accuracy : 0.832
100%|██████████| 469/469 [00:37<00:00, 12.63it/s]
Train CategoricalCrossEntropy : 0.448
Valid CategoricalCrossEntropy : 0.470
Val  Accuracy : 0.829
100%|██████████| 469/469 [00:29<00:00, 15.87it/s]
Train CategoricalCrossEntropy : 0.437
Valid CategoricalCrossEntropy : 0.462
Val  Accuracy : 0.836
100%|██████████| 469/469 [00:30<00:00, 15.20it/s]
Train CategoricalCrossEntropy : 0.431
Valid CategoricalCrossEntropy : 0.443
Val  Accuracy : 0.843
100%|██████████| 469/469 [00:30<00:00, 15.33it/s]
Train CategoricalCrossEntropy : 0.423
Valid CategoricalCrossEntropy : 0.439
Val  Accuracy : 0.847
100%|██████████| 469/469 [00:38<00:00, 12.17it/s]
Train CategoricalCrossEntropy : 0.413
Valid CategoricalCrossEntropy : 0.443
Val  Accuracy : 0.841
100%|██████████| 469/469 [00:30<00:00, 15.46it/s]
Train CategoricalCrossEntropy : 0.406
Valid CategoricalCrossEntropy : 0.429
Val  Accuracy : 0.847
100%|██████████| 469/469 [00:29<00:00, 15.82it/s]
Train CategoricalCrossEntropy : 0.401
Valid CategoricalCrossEntropy : 0.421
Val  Accuracy : 0.851
100%|██████████| 469/469 [00:29<00:00, 15.67it/s]
Train CategoricalCrossEntropy : 0.396
Valid CategoricalCrossEntropy : 0.417
Val  Accuracy : 0.856
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.CyclicLR(optimizer, base_lr=learning_rate/3,
                                  max_lr=learning_rate, step_size_up=100,
                                  step_size_down=len(train_loader)-100)

lrs = []
for i in range(epochs):
    for j in range(len(train_loader)):
        lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
        optimizer.step()
        scheduler.step()


plt.scatter(range(epochs*len(train_loader)), lrs)
plt.title("Cyclic LR Scheduler")
plt.xlabel("Steps")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.CyclicLR(optimizer, base_lr=learning_rate/3, max_lr=learning_rate, step_size_up=5, step_size_down=None)

lrs = []
for i in range(epochs):
    lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
    optimizer.step()
    scheduler.step()


plt.scatter(range(epochs), lrs)
plt.title("Cyclic LR Scheduler")
plt.xlabel("Epochs")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

9. Cosine Annealing LR Scheduler

In this section, we have trained our network using SGD with a cosine annealing learning rate scheduler. It is inspired by the paper - SGDR: Stochastic Gradient Descent with Warm Restarts. We can create cosine annealing scheduler using CosineAnnealingLR() constructor available from lr_scheduler sub-module. Below are important parameters of the constructor.

  • optimizer - The first parameter is optimizer instance.
  • T_max - This parameter accepts integer specifying a maximum number of iterations (epochs/batches) over which to anneal learning rate.
  • eta_min - This is the minimum learning rate at the end of T_max iterations.

In our case below, we have initialized CosineAnnealingLR() with T_max set to 10 and eta_min set to 0.0001. The learning rate will start with 0.001 and then it'll reduce to 0.0001 in cosine curve fashion. Then it'll increase for T_max iterations and so on. It'll keep on decreasing and increasing for T_max iterations.

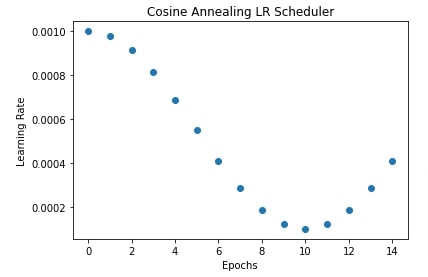

In the next cells, we have plotted how the learning rate will change during training if we use a cosine annealing learning rate scheduler to anneal learning rate.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.CosineAnnealingLR(optimizer, T_max=10, eta_min=0.0001)

val_acc = TrainModelInBatchesV2(conv_net, cross_entropy_loss, optimizer, [scheduler], train_loader, test_loader,epochs)
scheduler_val_accs["Cosine Annealing LR Scheduler Epochs"] = val_acc
100%|██████████| 469/469 [00:29<00:00, 15.76it/s]
Train CategoricalCrossEntropy : 1.793
Valid CategoricalCrossEntropy : 0.894
Val  Accuracy : 0.695
100%|██████████| 469/469 [00:30<00:00, 15.59it/s]
Train CategoricalCrossEntropy : 0.743
Valid CategoricalCrossEntropy : 0.738
Val  Accuracy : 0.752
100%|██████████| 469/469 [00:29<00:00, 15.79it/s]
Train CategoricalCrossEntropy : 0.664
Valid CategoricalCrossEntropy : 0.636
Val  Accuracy : 0.773
100%|██████████| 469/469 [00:36<00:00, 12.84it/s]
Train CategoricalCrossEntropy : 0.617
Valid CategoricalCrossEntropy : 0.647
Val  Accuracy : 0.770
100%|██████████| 469/469 [00:29<00:00, 15.81it/s]
Train CategoricalCrossEntropy : 0.587
Valid CategoricalCrossEntropy : 0.664
Val  Accuracy : 0.762
100%|██████████| 469/469 [00:29<00:00, 15.84it/s]
Train CategoricalCrossEntropy : 0.567
Valid CategoricalCrossEntropy : 0.591
Val  Accuracy : 0.795
100%|██████████| 469/469 [00:29<00:00, 15.87it/s]
Train CategoricalCrossEntropy : 0.548
Valid CategoricalCrossEntropy : 0.572
Val  Accuracy : 0.799
100%|██████████| 469/469 [00:36<00:00, 13.00it/s]
Train CategoricalCrossEntropy : 0.538
Valid CategoricalCrossEntropy : 0.564
Val  Accuracy : 0.804
100%|██████████| 469/469 [00:29<00:00, 15.73it/s]
Train CategoricalCrossEntropy : 0.530
Valid CategoricalCrossEntropy : 0.557
Val  Accuracy : 0.806
100%|██████████| 469/469 [00:29<00:00, 15.83it/s]
Train CategoricalCrossEntropy : 0.527
Valid CategoricalCrossEntropy : 0.555
Val  Accuracy : 0.806
100%|██████████| 469/469 [00:29<00:00, 15.84it/s]
Train CategoricalCrossEntropy : 0.524
Valid CategoricalCrossEntropy : 0.554
Val  Accuracy : 0.808
100%|██████████| 469/469 [00:37<00:00, 12.55it/s]
Train CategoricalCrossEntropy : 0.523
Valid CategoricalCrossEntropy : 0.554
Val  Accuracy : 0.809
100%|██████████| 469/469 [00:29<00:00, 15.88it/s]
Train CategoricalCrossEntropy : 0.523
Valid CategoricalCrossEntropy : 0.564
Val  Accuracy : 0.803
100%|██████████| 469/469 [00:30<00:00, 15.60it/s]
Train CategoricalCrossEntropy : 0.523
Valid CategoricalCrossEntropy : 0.558
Val  Accuracy : 0.802
100%|██████████| 469/469 [00:29<00:00, 15.65it/s]
Train CategoricalCrossEntropy : 0.526
Valid CategoricalCrossEntropy : 0.549
Val  Accuracy : 0.806
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.CosineAnnealingLR(optimizer, T_max=10, eta_min=0.0001)

lrs = []
for i in range(epochs):
    lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
    optimizer.step()
    scheduler.step()


plt.scatter(range(epochs), lrs)
plt.title("Cosine Annealing LR Scheduler")
plt.xlabel("Epochs")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.CosineAnnealingLR(optimizer, T_max=300, eta_min=0.0001)

lrs = []
for i in range(epochs):
    for j in range(len(train_loader)):
        lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
        optimizer.step()
        scheduler.step()


plt.scatter(range(epochs*len(train_loader)), lrs)
plt.title("Cosine Annealing LR Scheduler")
plt.xlabel("Steps")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

10. Cosine Annealing With Warm Restarts Scheduler

In this section, we have trained our network using a cosine annealing scheduler with warm restarts. It is inspired by the paper - SGDR: Stochastic Gradient Descent with Warm Restarts. We can create cosine annealing with warm restarts scheduler using CosineAnnealingWarmRestarts() constructor available from lr_scheduler sub-module. Below are important parameters of the constructor.

  • optimizer - The first parameter is optimizer instance as usual.
  • T_0 - It accepts integer specifying number of iterations (epochs/batches) for first restart (cycle).
  • T_mult - This parameter accepts that is used to factor increase cycle iterations.
  • eta_min - This parameter specifies minimum learning rate that should go in one cycle.

In our case, we have initialized CosineAnnealingWarmRestarts() with T_0 set to 3, T_mult set to 1 and eta_min set to 0.0001. The scheduler will start with an initial learning rate of 0.001 and reduce it to 0.0001 in 3 epochs. Then, it'll start again with a learning rate of 0.001 and decrease it to 0.0001 in 3 epochs.

In these next 2 cells, we have plotted a chart showing how the learning rate changes if we use cosine annealing with a warm restarts scheduler.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.CosineAnnealingWarmRestarts(optimizer, T_0=3, T_mult=1, eta_min=0.0001)

val_acc = TrainModelInBatchesV2(conv_net, cross_entropy_loss, optimizer, [scheduler], train_loader, test_loader,epochs)
scheduler_val_accs["Cosine Annealing With Warm Restarts Scheduler Epochs"] = val_acc
100%|██████████| 469/469 [00:30<00:00, 15.63it/s]
Train CategoricalCrossEntropy : 2.021
Valid CategoricalCrossEntropy : 1.115
Val  Accuracy : 0.640
100%|██████████| 469/469 [00:33<00:00, 13.97it/s]
Train CategoricalCrossEntropy : 0.834
Valid CategoricalCrossEntropy : 0.743
Val  Accuracy : 0.733
100%|██████████| 469/469 [00:33<00:00, 13.90it/s]
Train CategoricalCrossEntropy : 0.692
Valid CategoricalCrossEntropy : 0.693
Val  Accuracy : 0.751
100%|██████████| 469/469 [00:43<00:00, 10.89it/s]
Train CategoricalCrossEntropy : 0.657
Valid CategoricalCrossEntropy : 0.637
Val  Accuracy : 0.772
100%|██████████| 469/469 [00:35<00:00, 13.25it/s]
Train CategoricalCrossEntropy : 0.600
Valid CategoricalCrossEntropy : 0.607
Val  Accuracy : 0.785
100%|██████████| 469/469 [00:32<00:00, 14.63it/s]
Train CategoricalCrossEntropy : 0.567
Valid CategoricalCrossEntropy : 0.583
Val  Accuracy : 0.796
100%|██████████| 469/469 [00:29<00:00, 15.92it/s]
Train CategoricalCrossEntropy : 0.593
Valid CategoricalCrossEntropy : 0.597
Val  Accuracy : 0.786
100%|██████████| 469/469 [00:37<00:00, 12.63it/s]
Train CategoricalCrossEntropy : 0.551
Valid CategoricalCrossEntropy : 0.565
Val  Accuracy : 0.799
100%|██████████| 469/469 [00:29<00:00, 15.89it/s]
Train CategoricalCrossEntropy : 0.526
Valid CategoricalCrossEntropy : 0.548
Val  Accuracy : 0.806
100%|██████████| 469/469 [00:29<00:00, 15.92it/s]
Train CategoricalCrossEntropy : 0.568
Valid CategoricalCrossEntropy : 0.656
Val  Accuracy : 0.771
100%|██████████| 469/469 [00:29<00:00, 15.88it/s]
Train CategoricalCrossEntropy : 0.527
Valid CategoricalCrossEntropy : 0.563
Val  Accuracy : 0.800
100%|██████████| 469/469 [00:38<00:00, 12.22it/s]
Train CategoricalCrossEntropy : 0.506
Valid CategoricalCrossEntropy : 0.528
Val  Accuracy : 0.811
100%|██████████| 469/469 [00:29<00:00, 15.86it/s]
Train CategoricalCrossEntropy : 0.542
Valid CategoricalCrossEntropy : 0.537
Val  Accuracy : 0.810
100%|██████████| 469/469 [00:29<00:00, 15.81it/s]
Train CategoricalCrossEntropy : 0.513
Valid CategoricalCrossEntropy : 0.535
Val  Accuracy : 0.810
100%|██████████| 469/469 [00:29<00:00, 15.95it/s]
Train CategoricalCrossEntropy : 0.492
Valid CategoricalCrossEntropy : 0.521
Val  Accuracy : 0.814
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.CosineAnnealingWarmRestarts(optimizer, T_0=3, T_mult=1, eta_min=0.0001)

lrs = []
for i in range(epochs):
    lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
    optimizer.step()
    scheduler.step()

plt.scatter(range(epochs), lrs)
plt.title("Cosine Annealing Warm Restarts LR Scheduler")
plt.xlabel("Epochs")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.CosineAnnealingWarmRestarts(optimizer, T_0=len(train_loader), T_mult=2, eta_min=0.0001)

lrs = []
for i in range(epochs):
    for j in range(len(train_loader)):
        lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
        optimizer.step()
        scheduler.step()


plt.scatter(range(epochs*len(train_loader)), lrs)
plt.title("Cosine Annealing LR Scheduler")
plt.xlabel("Steps")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

11. Reduce LR On Plateau Scheduler

In this section, we have introduced another learning rate scheduler that reduces learning rate by monitoring metrics like loss, accuracy, etc. It reduces the learning rate only when the metric it is monitoring is not improving further. We can create reduce LR on the plateau scheduler using ReduceLROnPlateau() constructor. Below are important parameters of the constructor.

  • optimizer - The first parameter is the optimizer instance as usual.
  • mode - The mode specifies using string whether we want to monitor minimization of value of metric or maximization.
  • factor - The factor is the float value by which the current learning rate is multiplied to get a new learning rate if a metric is not improving.
  • patience - This parameter accepts integer value specifying for how many constant epochs if metrics are not improving then the learning rate should be changed.
  • threshold - This parameter accepts float value specifying at least by how much amount metric should improve.
  • min_lr - This is the minimum learning rate. The learning rate won't reduce beyond this.

Below, we have modified our training routine because now we have to provide metrics that we are monitoring in the call of the step() method of scheduler instance. We have asked our scheduler to monitor validation loss.

In our case, we have created a scheduler with an initial learning rate of 0.001, a factor of 0.95, the patience of 3, the threshold of 0.001 and a minimum learning rate of 0.0001. This will start with an initial learning rate of 0.001 and if validation loss is not decreased by at least 0.001 for 3 consecutive epochs then reduce the current learning rate to the current learning rate multiplied by 0.95.

from tqdm import tqdm

def CalcValLoss(model, loss_func, val_loader):
    with torch.no_grad(): ## Prevents calculation of gradients
        val_losses = []
        for X_batch, Y_batch in val_loader:
            preds = model(X_batch)
            loss = loss_func(preds, Y_batch)
            val_losses.append(loss)

        val_loss = torch.tensor(val_losses).mean()
        print("Valid CategoricalCrossEntropy : {:.3f}".format(val_loss))
        return val_loss

def TrainModelInBatchesV4(model, loss_func, optimizer, scheduler, train_loader, val_loader, epochs=5):
    for i in range(epochs):
        losses = [] ## Record loss of each batch
        for X_batch, Y_batch in tqdm(train_loader):
            preds = model(X_batch) ## Make Predictions by forward pass through network

            loss = loss_func(preds, Y_batch) ## Calculate Loss
            losses.append(loss) ## Record Loss

            optimizer.zero_grad() ## Zero weights before calculating gradients
            loss.backward() ## Calculate Gradients
            optimizer.step() ## Update Weights

        print("Train CategoricalCrossEntropy : {:.3f}".format(torch.tensor(losses).mean()))
        val_loss = CalcValLoss(model, loss_func, val_loader)

        scheduler.step(val_loss)

        Y_test_shuffled, test_preds = MakePredictions(model, val_loader)
        val_acc = accuracy_score(Y_test_shuffled, test_preds)
        print("Val  Accuracy : {:.3f}".format(val_acc))
    return val_acc
from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler = lr_scheduler.ReduceLROnPlateau(optimizer, mode='min',
                                           factor=0.95, patience=3,
                                           threshold=0.001, min_lr=0.0001, verbose=True)

val_acc = TrainModelInBatchesV4(conv_net, cross_entropy_loss, optimizer, scheduler, train_loader, test_loader,epochs)
scheduler_val_accs["Reduce LR On Plateau Scheduler"] = val_acc
100%|██████████| 469/469 [00:29<00:00, 15.96it/s]
Train CategoricalCrossEntropy : 2.294
Valid CategoricalCrossEntropy : 2.276
Val  Accuracy : 0.278
100%|██████████| 469/469 [00:29<00:00, 15.92it/s]
Train CategoricalCrossEntropy : 1.943
Valid CategoricalCrossEntropy : 1.092
Val  Accuracy : 0.677
100%|██████████| 469/469 [00:29<00:00, 15.94it/s]
Train CategoricalCrossEntropy : 0.785
Valid CategoricalCrossEntropy : 0.687
Val  Accuracy : 0.755
100%|██████████| 469/469 [00:35<00:00, 13.33it/s]
Train CategoricalCrossEntropy : 0.636
Valid CategoricalCrossEntropy : 0.618
Val  Accuracy : 0.775
100%|██████████| 469/469 [00:30<00:00, 15.16it/s]
Train CategoricalCrossEntropy : 0.586
Valid CategoricalCrossEntropy : 0.584
Val  Accuracy : 0.788
100%|██████████| 469/469 [00:29<00:00, 15.91it/s]
Train CategoricalCrossEntropy : 0.562
Valid CategoricalCrossEntropy : 0.573
Val  Accuracy : 0.791
100%|██████████| 469/469 [00:29<00:00, 15.94it/s]
Train CategoricalCrossEntropy : 0.546
Valid CategoricalCrossEntropy : 0.569
Val  Accuracy : 0.792
100%|██████████| 469/469 [00:32<00:00, 14.58it/s]
Train CategoricalCrossEntropy : 0.534
Valid CategoricalCrossEntropy : 0.540
Val  Accuracy : 0.806
100%|██████████| 469/469 [00:32<00:00, 14.24it/s]
Train CategoricalCrossEntropy : 0.526
Valid CategoricalCrossEntropy : 0.534
Val  Accuracy : 0.809
100%|██████████| 469/469 [00:29<00:00, 16.08it/s]
Train CategoricalCrossEntropy : 0.518
Valid CategoricalCrossEntropy : 0.556
Val  Accuracy : 0.797
100%|██████████| 469/469 [00:29<00:00, 16.08it/s]
Train CategoricalCrossEntropy : 0.506
Valid CategoricalCrossEntropy : 0.537
Val  Accuracy : 0.802
100%|██████████| 469/469 [00:29<00:00, 15.68it/s]
Train CategoricalCrossEntropy : 0.498
Valid CategoricalCrossEntropy : 0.510
Val  Accuracy : 0.817
100%|██████████| 469/469 [00:34<00:00, 13.69it/s]
Train CategoricalCrossEntropy : 0.494
Valid CategoricalCrossEntropy : 0.523
Val  Accuracy : 0.809
100%|██████████| 469/469 [00:29<00:00, 15.93it/s]
Train CategoricalCrossEntropy : 0.490
Valid CategoricalCrossEntropy : 0.501
Val  Accuracy : 0.819
100%|██████████| 469/469 [00:28<00:00, 16.25it/s]
Train CategoricalCrossEntropy : 0.481
Valid CategoricalCrossEntropy : 0.526
Val  Accuracy : 0.804

12. Combining Multiple Schedulers

In this section, we have explained how we can combine multiple schedulers when using PyTorch. As we had said earlier, PyTorch let us execute more than one scheduler to apply the effect of them on learning rate together.

Below, we have created two schedulers that we'll use for our example. We have created a step learning rate scheduler and cosine annealing learning rate schedules. We have given both as a list to our training routine.

In the next cell, we have also plotted how the learning rate will change during training if we apply two schedulers one after another.

from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(1e-3) # 0.001

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler1 = lr_scheduler.StepLR(optimizer, step_size=2, gamma=0.95)
scheduler2 = lr_scheduler.CosineAnnealingLR(optimizer, T_max=10, eta_min=0.0001)

val_acc = TrainModelInBatchesV3(conv_net, cross_entropy_loss, optimizer, [scheduler1, scheduler2], train_loader, test_loader,epochs)
scheduler_val_accs["Combining Multiple LR Schedulers Epochs V1"] = val_acc
100%|██████████| 469/469 [00:29<00:00, 15.93it/s]
Train CategoricalCrossEntropy : 2.300
Valid CategoricalCrossEntropy : 2.296
Val  Accuracy : 0.150
100%|██████████| 469/469 [00:29<00:00, 16.16it/s]
Train CategoricalCrossEntropy : 2.288
Valid CategoricalCrossEntropy : 2.274
Val  Accuracy : 0.289
100%|██████████| 469/469 [00:28<00:00, 16.20it/s]
Train CategoricalCrossEntropy : 2.237
Valid CategoricalCrossEntropy : 2.176
Val  Accuracy : 0.483
100%|██████████| 469/469 [00:34<00:00, 13.77it/s]
Train CategoricalCrossEntropy : 1.975
Valid CategoricalCrossEntropy : 1.648
Val  Accuracy : 0.628
100%|██████████| 469/469 [00:32<00:00, 14.58it/s]
Train CategoricalCrossEntropy : 1.219
Valid CategoricalCrossEntropy : 0.931
Val  Accuracy : 0.695
100%|██████████| 469/469 [00:29<00:00, 16.17it/s]
Train CategoricalCrossEntropy : 0.820
Valid CategoricalCrossEntropy : 0.762
Val  Accuracy : 0.730
100%|██████████| 469/469 [00:29<00:00, 16.10it/s]
Train CategoricalCrossEntropy : 0.715
Valid CategoricalCrossEntropy : 0.704
Val  Accuracy : 0.750
100%|██████████| 469/469 [00:31<00:00, 15.10it/s]
Train CategoricalCrossEntropy : 0.665
Valid CategoricalCrossEntropy : 0.672
Val  Accuracy : 0.760
100%|██████████| 469/469 [00:32<00:00, 14.26it/s]
Train CategoricalCrossEntropy : 0.632
Valid CategoricalCrossEntropy : 0.640
Val  Accuracy : 0.770
100%|██████████| 469/469 [00:29<00:00, 16.08it/s]
Train CategoricalCrossEntropy : 0.609
Valid CategoricalCrossEntropy : 0.618
Val  Accuracy : 0.779
100%|██████████| 469/469 [00:29<00:00, 16.07it/s]
Train CategoricalCrossEntropy : 0.591
Valid CategoricalCrossEntropy : 0.603
Val  Accuracy : 0.783
100%|██████████| 469/469 [00:30<00:00, 15.35it/s]
Train CategoricalCrossEntropy : 0.576
Valid CategoricalCrossEntropy : 0.596
Val  Accuracy : 0.787
100%|██████████| 469/469 [00:37<00:00, 12.52it/s]
Train CategoricalCrossEntropy : 0.564
Valid CategoricalCrossEntropy : 0.579
Val  Accuracy : 0.791
100%|██████████| 469/469 [00:28<00:00, 16.23it/s]
Train CategoricalCrossEntropy : 0.554
Valid CategoricalCrossEntropy : 0.571
Val  Accuracy : 0.794
100%|██████████| 469/469 [00:29<00:00, 16.12it/s]
Train CategoricalCrossEntropy : 0.545
Valid CategoricalCrossEntropy : 0.576
Val  Accuracy : 0.794
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler1 = lr_scheduler.StepLR(optimizer, step_size=1500, gamma=0.95)
scheduler2 = lr_scheduler.CosineAnnealingLR(optimizer, T_max=1500, eta_min=0.0001)

lrs = []
for i in range(epochs):
    for j in range(len(train_loader)):
        lrs.append(optimizer.state_dict()["param_groups"][0]["lr"].item())
        optimizer.step()
        scheduler1.step()
        scheduler2.step()

plt.scatter(range(epochs* len(train_loader)), lrs)
plt.title("Combining Multiple LR Schedulers Epochs V1")
plt.xlabel("Epochs")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

Below, we have created another example demonstrating the usage of multiple schedulers. We have modified our training routine to use different schedulers based on the number of batches completed. We are passing 4 schedulers to our training routine. The first scheduler is used for 2000 batches at the start. Then for another 2000 batches, the second scheduler is used and the third scheduler for another 2000 batches. The remaining batches at the end are executed with the fourth scheduler.

In the next cell, we have also plotted how the learning rate changes during training if we combine schedules this way.

def TrainModelInBatchesV5(model, loss_func, optimizer, schedulers, train_loader, val_loader, epochs=5):
    steps=0
    for i in range(epochs):
        losses = [] ## Record loss of each batch
        for X_batch, Y_batch in tqdm(train_loader):
            preds = model(X_batch) ## Make Predictions by forward pass through network

            loss = loss_func(preds, Y_batch) ## Calculate Loss
            losses.append(loss) ## Record Loss

            optimizer.zero_grad() ## Zero weights before calculating gradients
            loss.backward() ## Calculate Gradients
            optimizer.step() ## Update Weights

            steps += 1
            if steps < 2000:
                schedulers[0].step()
            elif steps >= 2000 and steps <= 4000:
                schedulers[1].step()
            elif steps >= 4000 and steps <= 6000:
                schedulers[2].step()
            else:
                schedulers[3].step()

        print("Train CategoricalCrossEntropy : {:.3f}".format(torch.tensor(losses).mean()))
        CalcValLoss(model, loss_func, val_loader)

        Y_test_shuffled, test_preds = MakePredictions(model, val_loader)
        val_acc = accuracy_score(Y_test_shuffled, test_preds)
        print("Val  Accuracy : {:.3f}".format(val_acc))
    return val_acc
from torch.optim import SGD, RMSprop, Adam
from torch.optim import lr_scheduler

#torch.manual_seed(42) ##For reproducibility.This will make sure that same random weights are initialized each time.
epochs = 15
learning_rate = torch.tensor(3e-3)
total_steps = len(train_loader) * epochs

conv_net = ConvNet()
cross_entropy_loss = nn.CrossEntropyLoss()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler1 = lr_scheduler.CosineAnnealingLR(optimizer, T_max=2000, eta_min=0.002)
scheduler2 = lr_scheduler.CosineAnnealingLR(optimizer, T_max=2000, eta_min=0.001)
scheduler3 = lr_scheduler.CosineAnnealingLR(optimizer, T_max=2000, eta_min=0.0005)
scheduler4 = lr_scheduler.CosineAnnealingLR(optimizer, T_max=1000, eta_min=0.0001)
schedulers = [scheduler1, scheduler2, scheduler3, scheduler4]

val_acc = TrainModelInBatchesV5(conv_net, cross_entropy_loss, optimizer, schedulers, train_loader, test_loader,epochs)
scheduler_val_accs["Combining Multiple LR Schedulers Epochs V2"] = val_acc
100%|██████████| 469/469 [00:29<00:00, 16.01it/s]
Train CategoricalCrossEntropy : 1.588
Valid CategoricalCrossEntropy : 0.967
Val  Accuracy : 0.716
100%|██████████| 469/469 [00:29<00:00, 15.71it/s]
Train CategoricalCrossEntropy : 0.696
Valid CategoricalCrossEntropy : 0.632
Val  Accuracy : 0.772
100%|██████████| 469/469 [00:29<00:00, 15.98it/s]
Train CategoricalCrossEntropy : 0.606
Valid CategoricalCrossEntropy : 0.585
Val  Accuracy : 0.793
100%|██████████| 469/469 [00:29<00:00, 15.82it/s]
Train CategoricalCrossEntropy : 0.561
Valid CategoricalCrossEntropy : 0.726
Val  Accuracy : 0.781
100%|██████████| 469/469 [00:29<00:00, 15.97it/s]
Train CategoricalCrossEntropy : 0.531
Valid CategoricalCrossEntropy : 0.526
Val  Accuracy : 0.816
100%|██████████| 469/469 [00:29<00:00, 16.10it/s]
Train CategoricalCrossEntropy : 0.504
Valid CategoricalCrossEntropy : 0.544
Val  Accuracy : 0.805
100%|██████████| 469/469 [00:29<00:00, 16.01it/s]
Train CategoricalCrossEntropy : 0.489
Valid CategoricalCrossEntropy : 0.509
Val  Accuracy : 0.816
100%|██████████| 469/469 [00:39<00:00, 11.83it/s]
Train CategoricalCrossEntropy : 0.478
Valid CategoricalCrossEntropy : 0.496
Val  Accuracy : 0.826
100%|██████████| 469/469 [00:28<00:00, 16.20it/s]
Train CategoricalCrossEntropy : 0.470
Valid CategoricalCrossEntropy : 0.503
Val  Accuracy : 0.821
100%|██████████| 469/469 [00:29<00:00, 15.84it/s]
Train CategoricalCrossEntropy : 0.467
Valid CategoricalCrossEntropy : 0.492
Val  Accuracy : 0.827
100%|██████████| 469/469 [00:29<00:00, 16.05it/s]
Train CategoricalCrossEntropy : 0.461
Valid CategoricalCrossEntropy : 0.493
Val  Accuracy : 0.825
100%|██████████| 469/469 [00:29<00:00, 15.96it/s]
Train CategoricalCrossEntropy : 0.456
Valid CategoricalCrossEntropy : 0.487
Val  Accuracy : 0.829
100%|██████████| 469/469 [00:29<00:00, 16.01it/s]
Train CategoricalCrossEntropy : 0.454
Valid CategoricalCrossEntropy : 0.483
Val  Accuracy : 0.826
100%|██████████| 469/469 [00:29<00:00, 15.81it/s]
Train CategoricalCrossEntropy : 0.451
Valid CategoricalCrossEntropy : 0.490
Val  Accuracy : 0.828
100%|██████████| 469/469 [00:29<00:00, 16.04it/s]
Train CategoricalCrossEntropy : 0.448
Valid CategoricalCrossEntropy : 0.477
Val  Accuracy : 0.829
import matplotlib.pyplot as plt

conv_net = ConvNet()
optimizer = SGD(params=conv_net.parameters(), lr=learning_rate)
scheduler1 = lr_scheduler.CosineAnnealingLR(optimizer, T_max=2000, eta_min=0.002)
scheduler2 = lr_scheduler.CosineAnnealingLR(optimizer, T_max=2000, eta_min=0.001)
scheduler3 = lr_scheduler.CosineAnnealingLR(optimizer, T_max=2000, eta_min=0.0005)
scheduler4 = lr_scheduler.CosineAnnealingLR(optimizer, T_max=1000, eta_min=0.00001)
schedulers = [scheduler1, scheduler2, scheduler3, scheduler4]

lrs, steps = [], 0
for i in range(epochs):
    for j in range(len(train_loader)):
        lrs.append(optimizer.state_dict()["param_groups"][0]["lr"])
        optimizer.step()
        steps += 1
        if steps < 2000:
            schedulers[0].step()
        elif steps >= 2000 and steps <= 4000:
            schedulers[1].step()
        elif steps >= 4000 and steps <= 6000:
            schedulers[2].step()
        else:
            schedulers[3].step()

plt.scatter(range(epochs*len(train_loader)), lrs)
plt.title("Combining Multiple LR Schedulers Epochs V2")
plt.xlabel("Steps")
plt.ylabel("Learning Rate");

PyTorch: Learning Rate Schedules

Final Test Set Accuracy Comparison of Various Schedulers

In this section, we have created a pandas dataframe showing a comparison of the test accuracy of the model with various schedulers. We can notice that schedulers like one cycle and cyclic LR are doing a good job in our case.

import pandas as pd

pd.DataFrame(scheduler_val_accs, index=["Valid Accuracy"]).T
Valid Accuracy
Constant Learning Rate 0.8160
Step LR Scheduler Epochs 0.8083
Step LR Scheduler Batches 0.7762
MultiStep LR Scheduler Epochs 0.8143
Multiplicative LR Scheduler Epochs 0.8215
Lambda LR Scheduler Epochs 0.8172
Exponential LR Scheduler Epochs 0.7754
One Cycle LR Scheduler Batches 0.8610
Cyclic LR Scheduler Batches 0.8564
Cosine Annealing LR Scheduler Epochs 0.8062
Cosine Annealing With Warm Restarts Scheduler Epochs 0.8142
Reduce LR On Plateau Scheduler 0.8044
Combining Multiple LR Schedulers Epochs V1 0.7937
Combining Multiple LR Schedulers Epochs V2 0.8285

This ends our small tutorial explaining how we can use various learning rate schedulers available from PyTorch. Please feel free to let us know your views in the comments section.

References

Sunny Solanki  Sunny Solanki

YouTube Subscribe Comfortable Learning through Video Tutorials?

If you are more comfortable learning through video tutorials then we would recommend that you subscribe to our YouTube channel.

Need Help Stuck Somewhere? Need Help with Coding? Have Doubts About the Topic/Code?

When going through coding examples, it's quite common to have doubts and errors.

If you have doubts about some code examples or are stuck somewhere when trying our code, send us an email at coderzcolumn07@gmail.com. We'll help you or point you in the direction where you can find a solution to your problem.

You can even send us a mail if you are trying something new and need guidance regarding coding. We'll try to respond as soon as possible.

Share Views Want to Share Your Views? Have Any Suggestions?

If you want to

  • provide some suggestions on topic
  • share your views
  • include some details in tutorial
  • suggest some new topics on which we should create tutorials/blogs
Please feel free to contact us at coderzcolumn07@gmail.com. We appreciate and value your feedbacks. You can also support us with a small contribution by clicking DONATE.


Subscribe to Our YouTube Channel

YouTube SubScribe

Newsletter Subscription
